Adapter for Discovery 2 Cruise Control switch

PETG1 FILECC-BYElectrical

Loading 3D viewer...

CARGO ID · LR-3D / 0014QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Cargo manifestMAN-0014
  • [01].STL
  • [02]Bounding box91.94 × 71.16 × 34.53 mm
  • [03]Volume19,866.29 mm³
Depot briefBY SIMON RAFFERTY

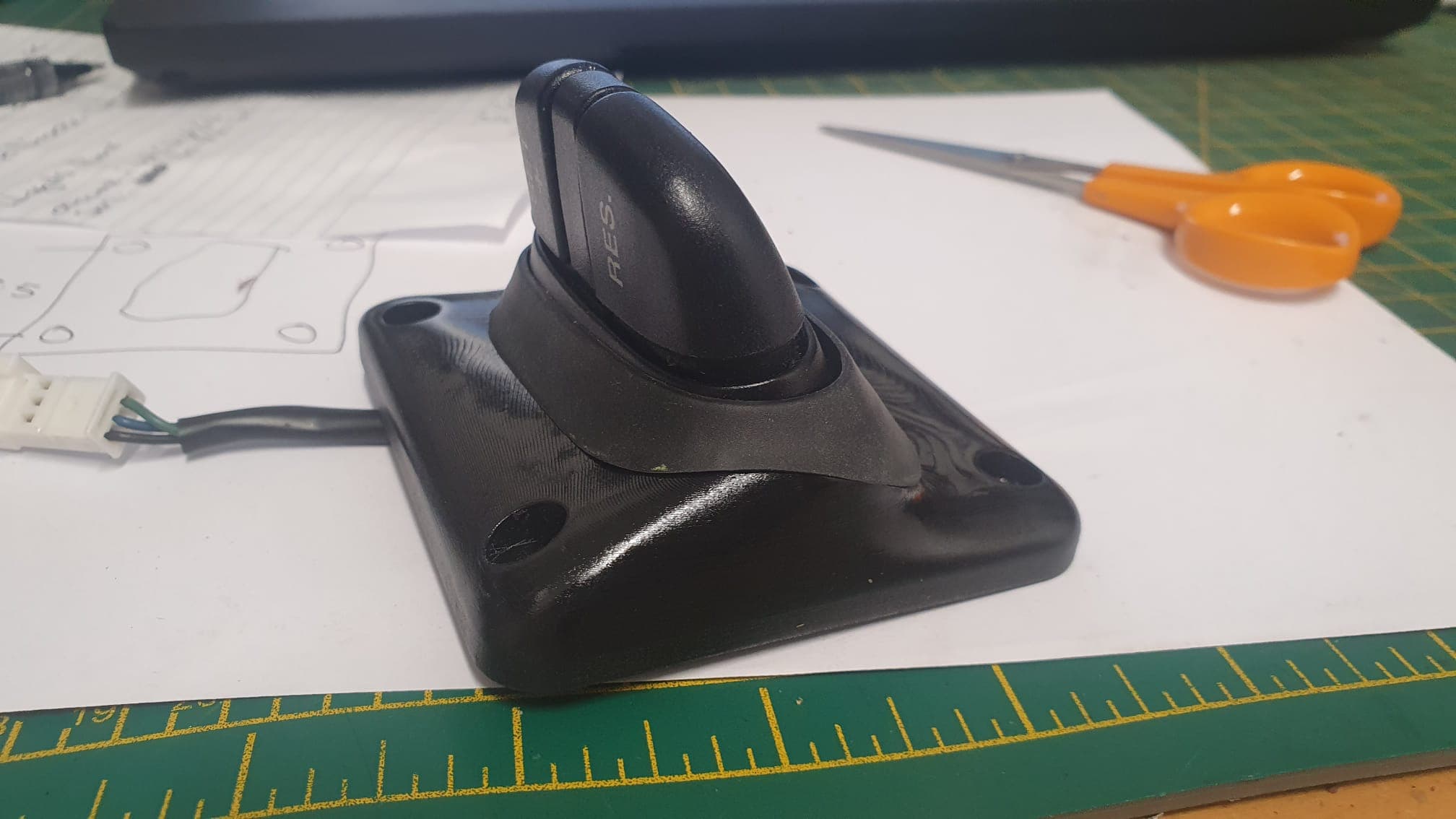

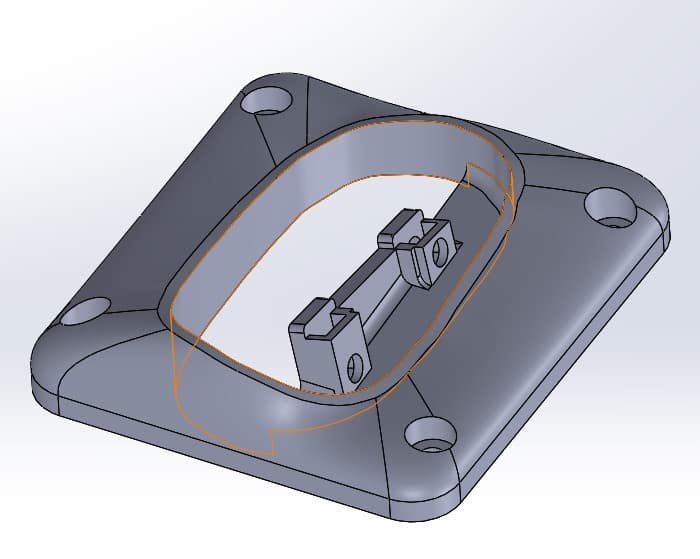

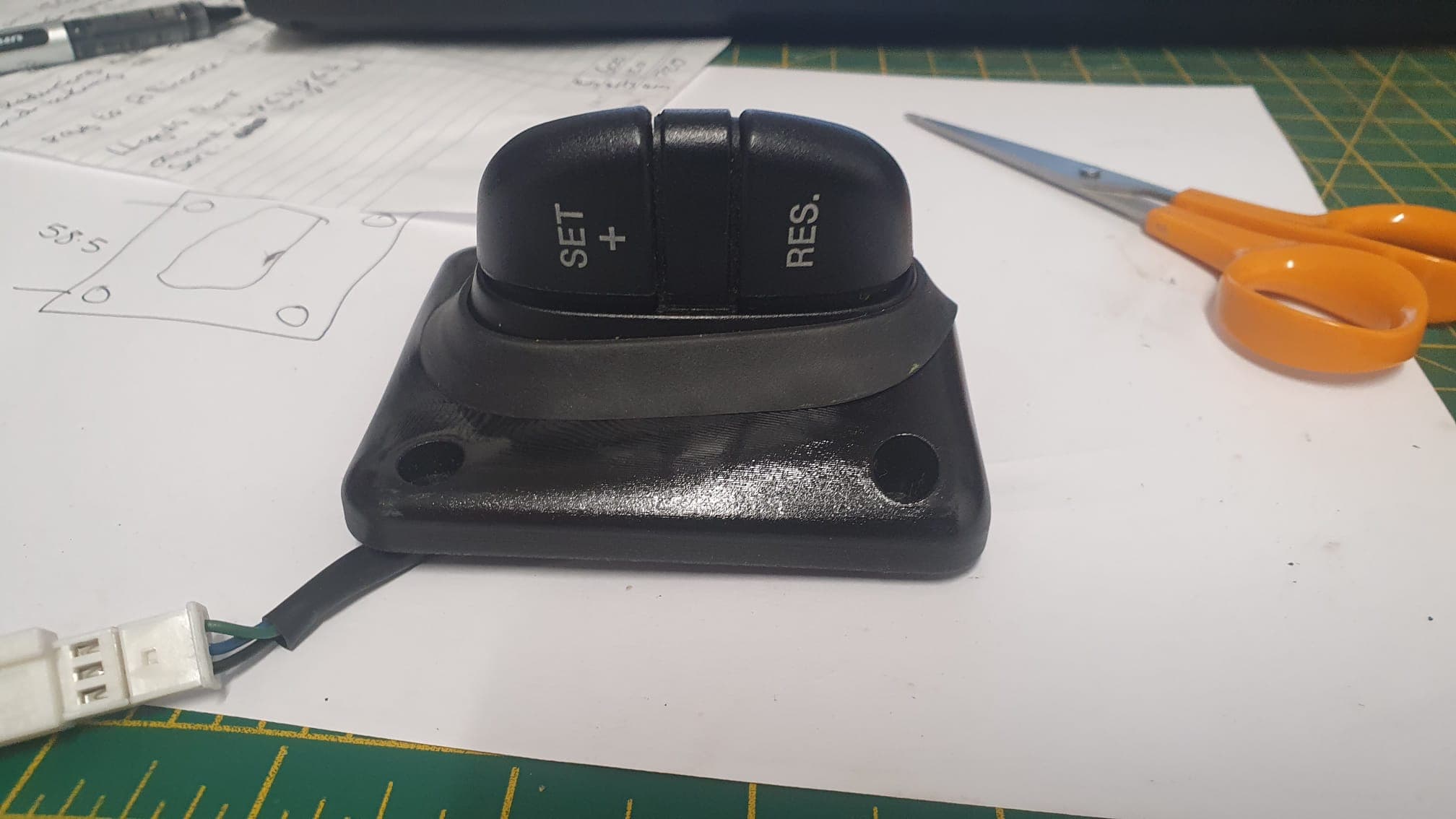

Adaptor to fit Discovery 2 Cruise Control switch to Defender td5. Quote from SimonRafferty: "It's very easy to add cruise control to any Td5 Land Rover Defender just by adding a couple of wires to the ECU and connecting them to a switch. (search on line for details) Unfortunately, there are no nice looking switches. My solution was to fit a switch from a Td5 Discovery 2 - and print this adaptor so it can easily screw on to the steering column. This is version 2 which is a much better fit and prints in one piece. Use higher temperature filament such as PETG or PAHT - otherwise it will melt in the sun. That's how come V2 came to be! Insert a couple of M4 Nuts into the slots provided, then attach the switch with 2 x M4 x 10mm screws"
