Dashboard Auxiliary-Switch Console

ABS · PETGMULTI-PART6 FILESCC-BYDashboard

Loading 3D viewer...

CARGO ID · LR-3D / 0163QTY 6 · STLHANDLE · NO SUPPORTS

Field photographs6 PLATES

PLATE 01 / 06No caption recorded

Cargo manifestMAN-0163

[01]New_Defender_Beacon_Console_LHD_Blank.stlNew_Defender_Beacon_Console_LHD_Blank.stl.STL
[02]New_Defender_Beacon_Console_LHD_Buttons.stlNew_Defender_Beacon_Console_LHD_Buttons.stl.STL
[03]New_Defender_Beacon_Console_RHD_Blank.stlNew_Defender_Beacon_Console_RHD_Blank.stl.STL
[04]New_Defender_Beacon_Console_RHD_Buttons.stlNew_Defender_Beacon_Console_RHD_Buttons.stl.STL
[05]New_Defender_cover_LHD.stlNew_Defender_cover_LHD.stl.STL
[06]New_Defender_cover_RHD.stlNew_Defender_cover_RHD.stl.STL
[07]Bounding box926.770 × 117.521 × 21.500 mm
[08]Volume345,631.349 mm³

Depot briefBY JOHN SECCOMBE (MOSTDOM)

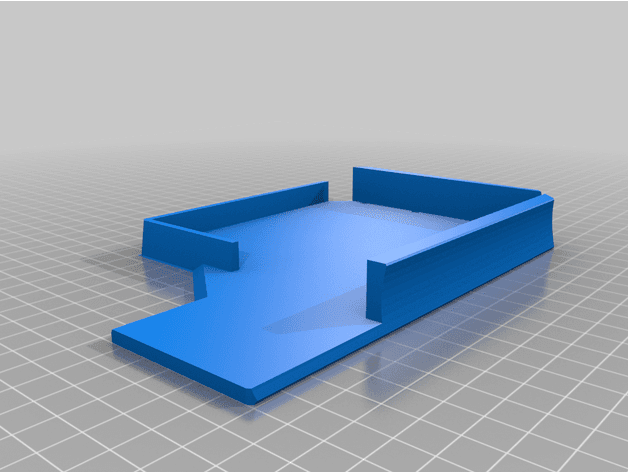

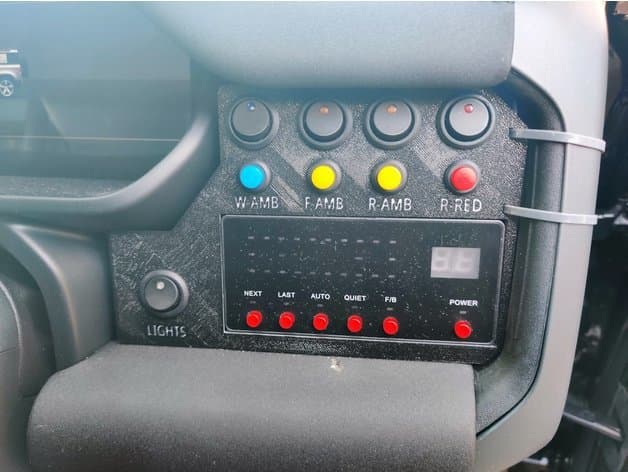

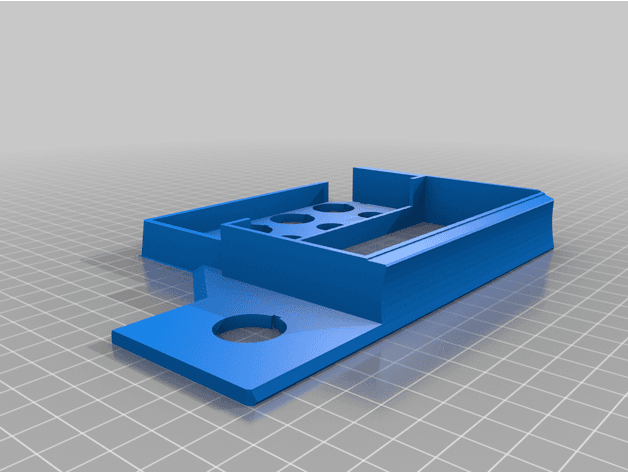

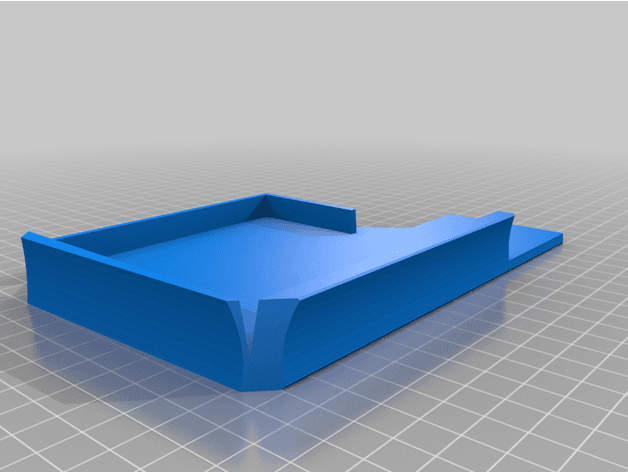

Console for mounting auxiliary switches or other equipment in the small driver-side dashboard recess. Blank and pre-drilled versions are included for both left- and right-hand-drive vehicles
