Hands-Free AdBlue Funnel and Jug
ABS · PETGMULTI-PART2 FILESCC-BY-SAMechanical
Loading 3D viewer...
CARGO ID · LR-3D / 0195QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs5 PLATES

PLATE 01 / 05No caption recorded
Cargo manifestMAN-0195
- [01]range-rover-adblue-funnel-stl.stlrange-rover-adblue-funnel-stl.stl.STL
- [02]adblue-pouring-17l-jug.stladblue-pouring-17l-jug.stl.STL
- [03]Bounding box300.000 × 123.003 × 120.483 mm
- [04]Volume190,258.567 mm³
Depot briefBY BARRY GREIG (BARRYGREIG_4121232)

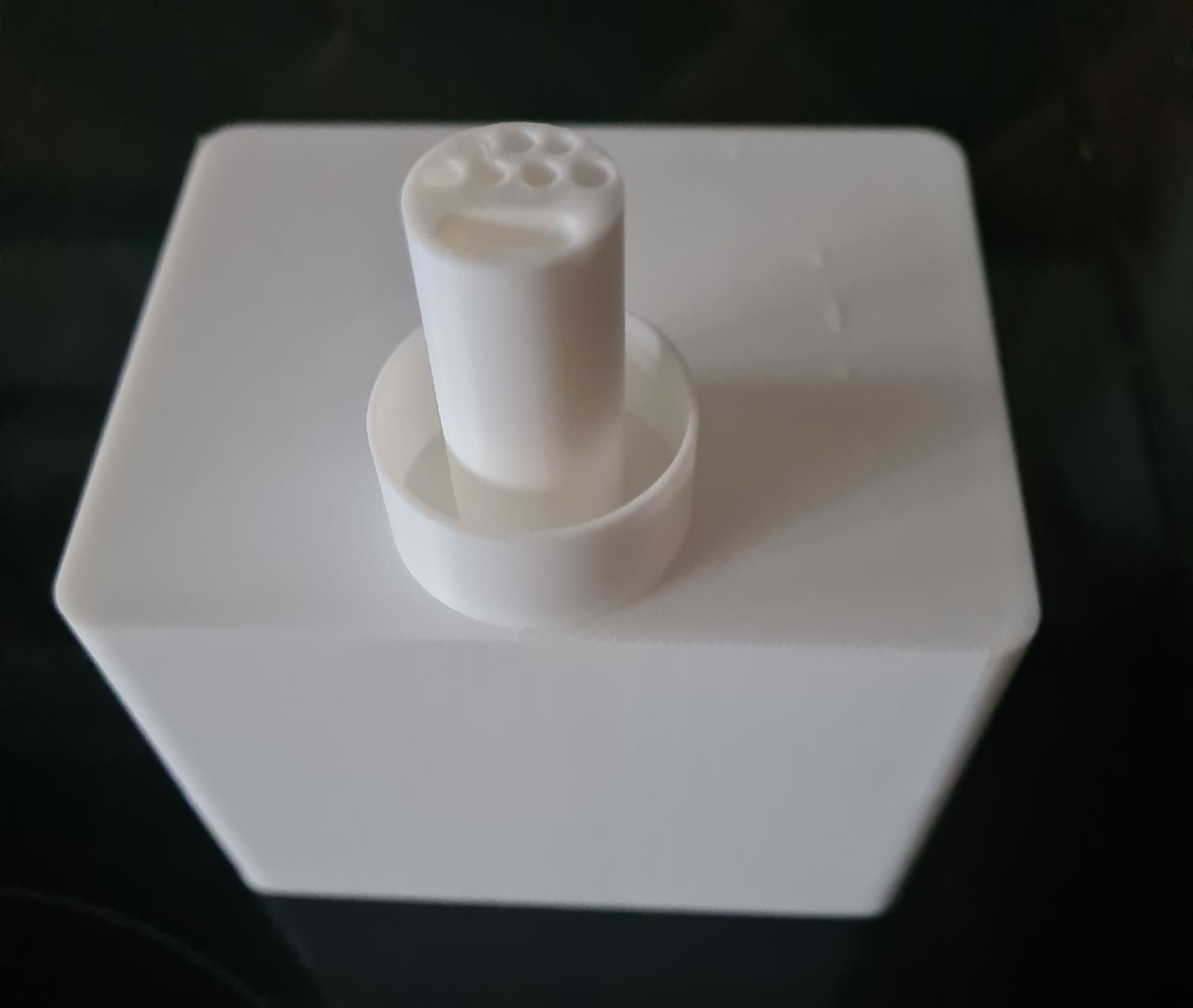

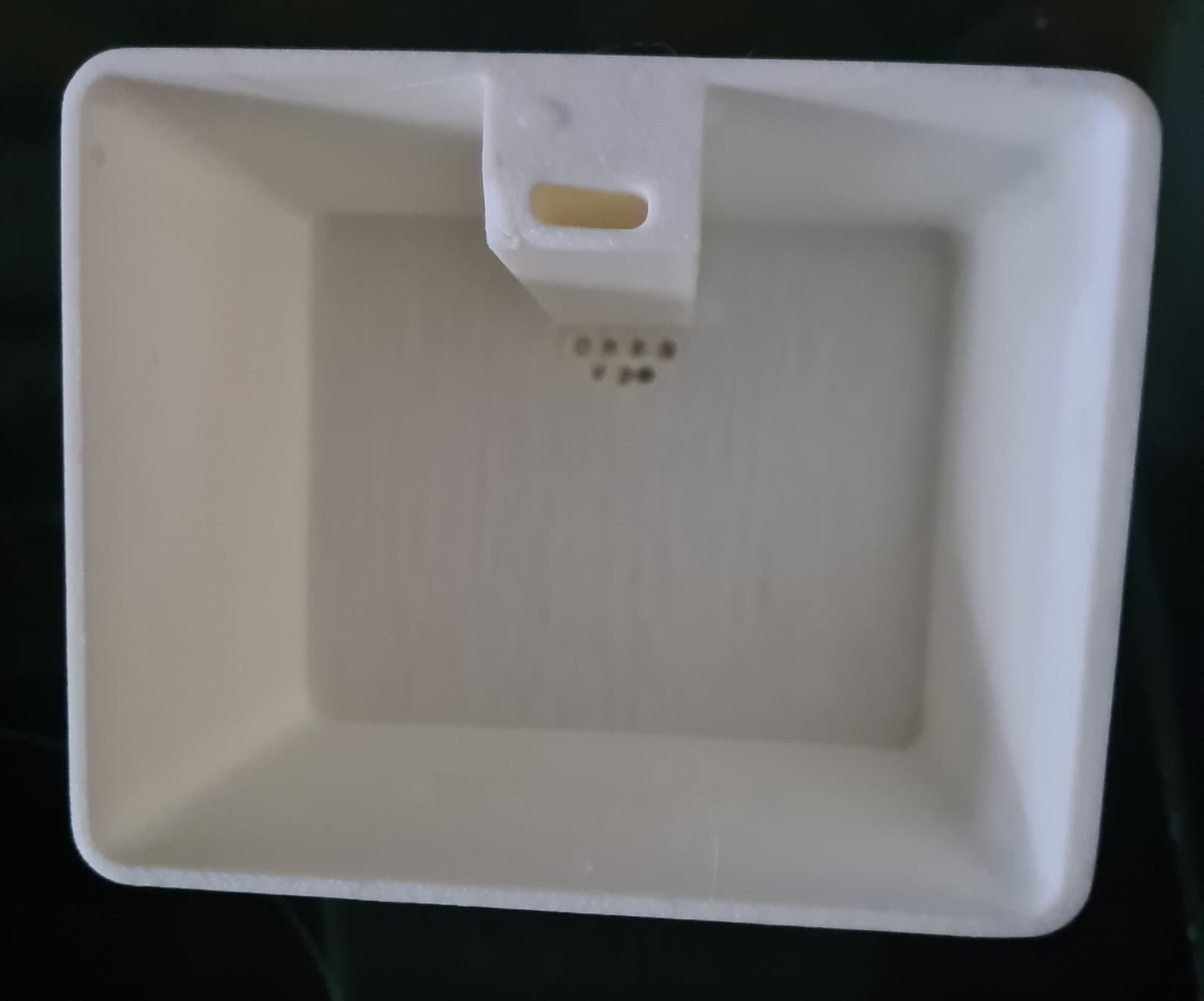

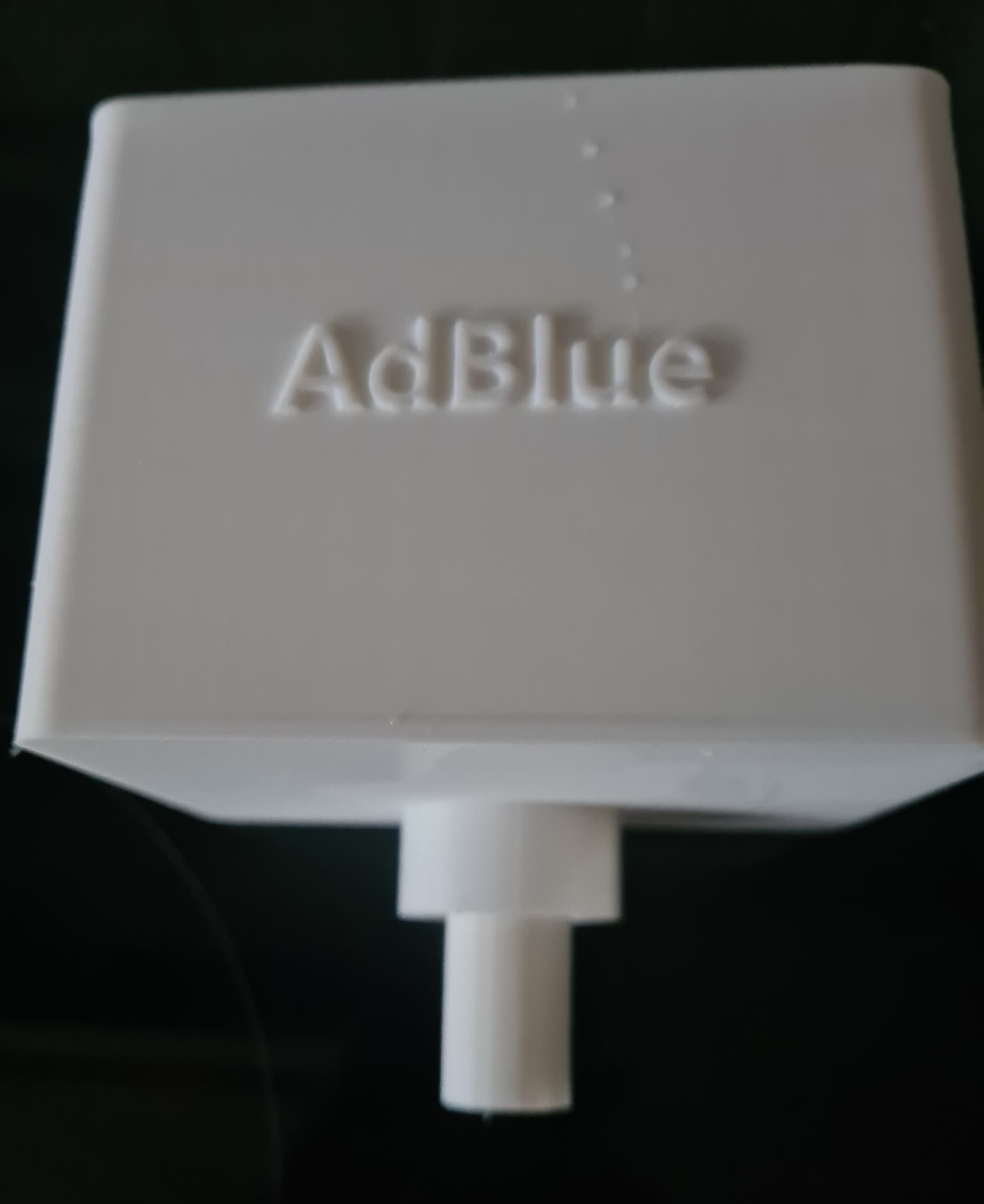

Stable funnel that sleeves over the 18 mm AdBlue filler tube and rests on the adjacent air intake. It has approximately half-litre capacity, 3 mm debris-filter holes, an air-escape tube to prevent glugging, and a measured gravity-flow rate of about two litres per minute. A separate 1.7-litre pouring jug is included.
