Instrument-Cluster Support Bracket

REPLACES OEM347453

ABS · Nylon · PETG1 FILECC-BY-NCDashboard

Loading 3D viewer...

CARGO ID · LR-3D / 0154QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs6 PLATES

PLATE 01 / 06No caption recorded

Cargo manifestMAN-0154

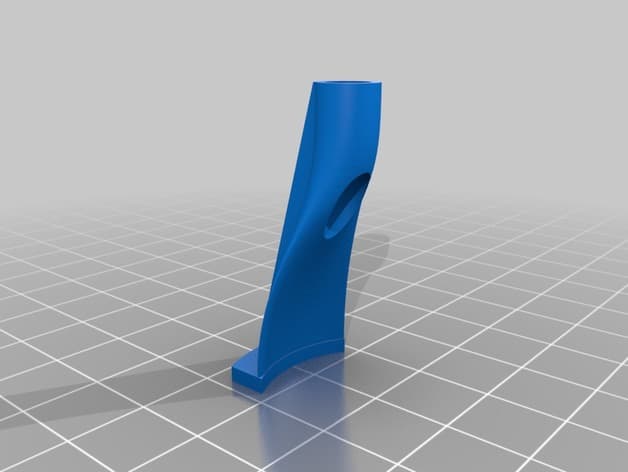

[01]Suporte_Cluster_LR.stlSuporte_Cluster_LR.stl.STL
[02]Bounding box37.673 × 17.415 × 16.538 mm
[03]Volume1,238.879 mm³

Depot briefBY SAT STAR (SATSTAR)

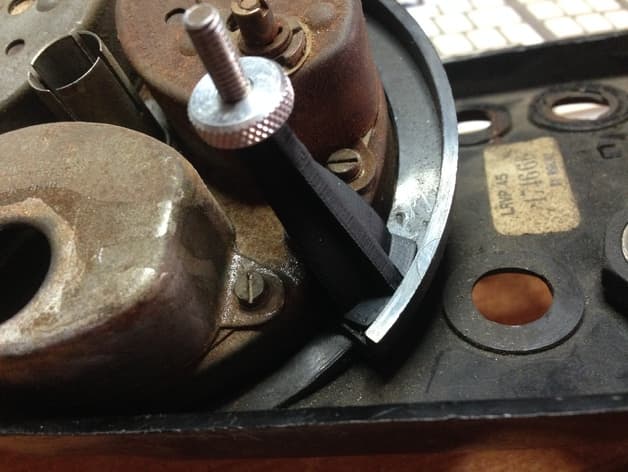

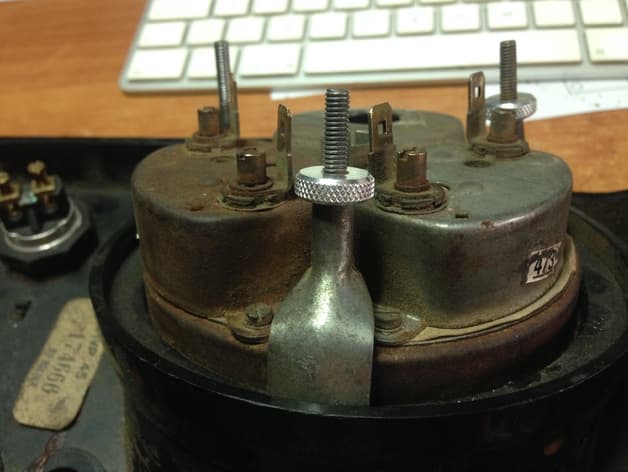

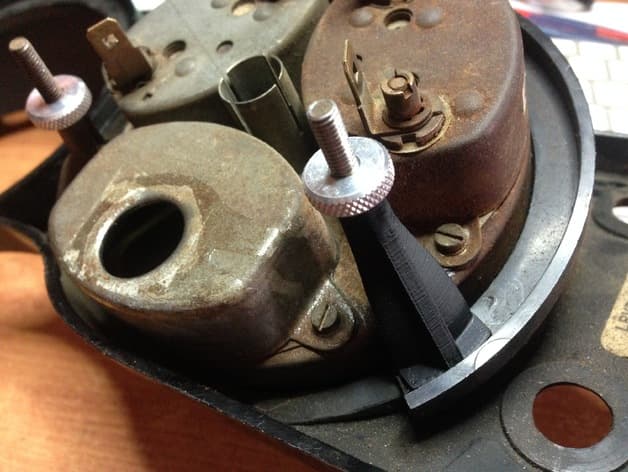

Replacement support bracket for the instrument cluster where the original is missing or damaged. Compare handedness, hole spacing, and dashboard structure before printing.

View original source ↗
