EAS Calibration Blocks

REPLACES OEMLRT-60-003

ABS · Nylon · PETGMULTI-PART8 FILESCC-BYMechanical

Loading 3D viewer...

CARGO ID · LR-3D / 0043QTY 8 · STLHANDLE · NO SUPPORTS

Field photographs9 PLATES

PLATE 01 / 09No caption recorded

Cargo manifestMAN-0043

[01]P38_heightblock_access_35_front.stlP38_heightblock_access_35_front.stl.STL
[02]P38_heightblock_access_40_rear_.stlP38_heightblock_access_40_rear_.stl.STL
[03]P38_heightblock_low_75_front.stlP38_heightblock_low_75_front.stl.STL
[04]P38_heightblock_low_80_rear.stlP38_heightblock_low_80_rear.stl.STL
[05]P38_heightblock_standard_100_front.stlP38_heightblock_standard_100_front.stl.STL
[06]P38_heightblock_standard_105_rear.stlP38_heightblock_standard_105_rear.stl.STL
[07]P38_heightblock_high_140_front.stlP38_heightblock_high_140_front.stl.STL
[08]P38_heightblock_high_145_rear.stlP38_heightblock_high_145_rear.stl.STL
[09]Bounding box720.000 × 45.000 × 45.000 mm
[10]Volume811,242.948 mm³

Depot briefBY M1N1M

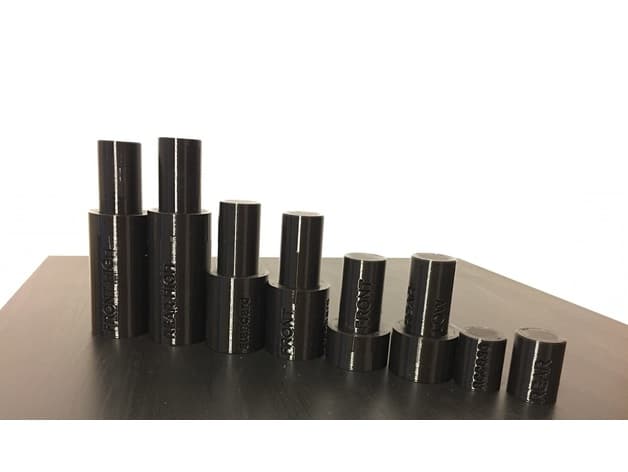

Height-setting blocks for calibrating Range Rover P38 electronic air suspension level sensors. Includes front and rear blocks for Access, Low, Standard, and High settings
