Sunroof Sliding-Guide Repair Kit

ABS · PETGMULTI-PART7 FILES0 DOWNLOADSCC-BYCabin trim, cargo & roof Spacer Bushing Right Repair part

Loading 3D viewer...

CARGO ID · LR-3D / 2547QTY 7 · STLHANDLE · NO SUPPORTS

Field photographs4 PLATES

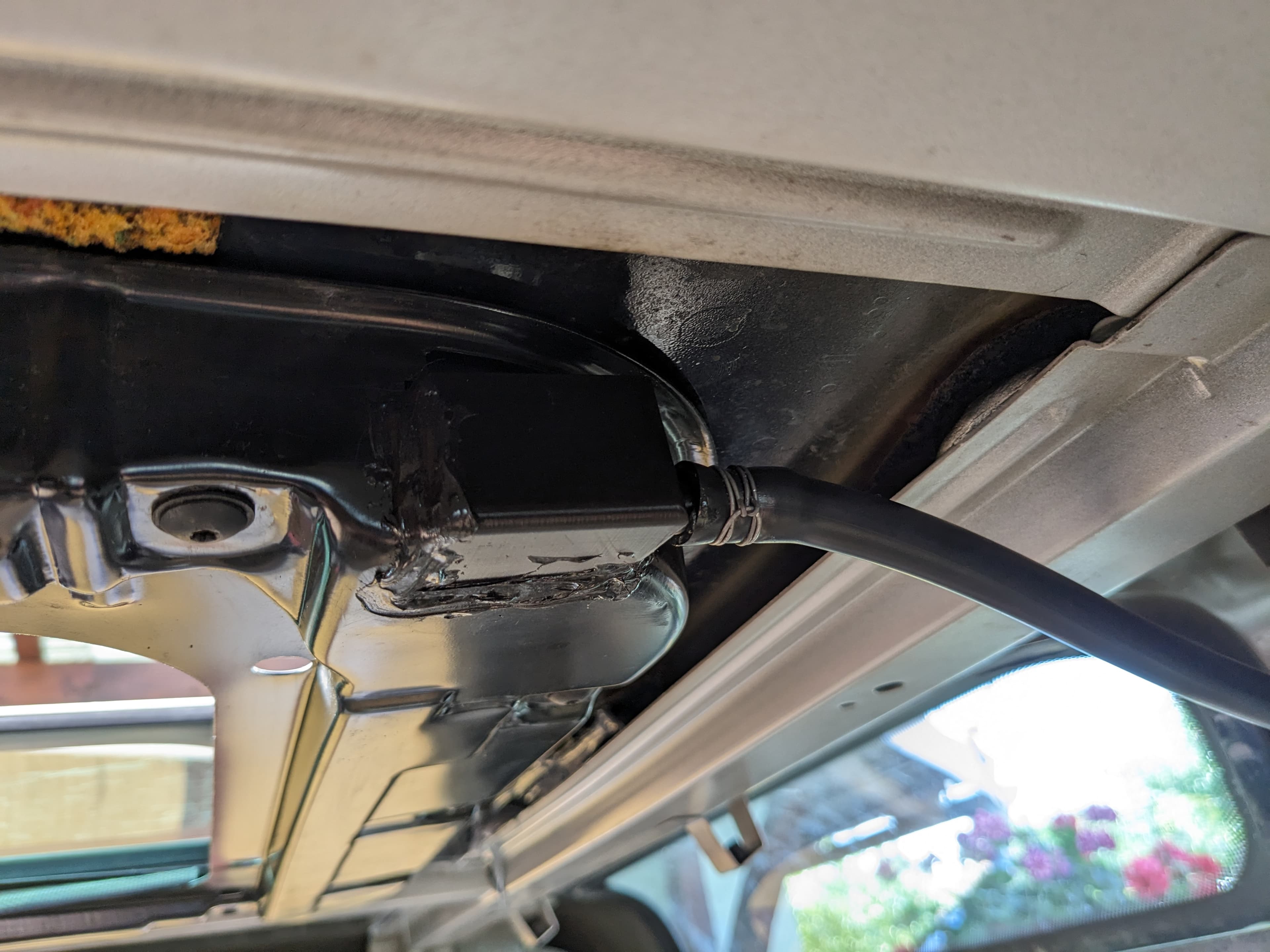

Sunroof Sliding-Guide Repair Kit — image 1 of 4

PLATE 01 / 04No caption recorded

Cargo manifestMAN-2547

[01]OutterGuide.stlOutterGuide.stl.STL
[02]GuideBushing.stlGuideBushing.stl.STL
[03]ScrewSpacer.stlScrewSpacer.stl.STL
[04]OuterGuide.stepOuterGuide.step.STL
[05]ScrewSpacer.stepScrewSpacer.step.STL
[06]GuideBushing.stepGuideBushing.step.STL
[07]rh-drain-corner-discovery2-v21.stlrh-drain-corner-discovery2-v21.stl.STL
[08]Bounding box171.252 × 38.000 × 28.500 mm
[09]Volume11,203.878 mm³

Depot briefBY ROBERT SEDLÁČEK

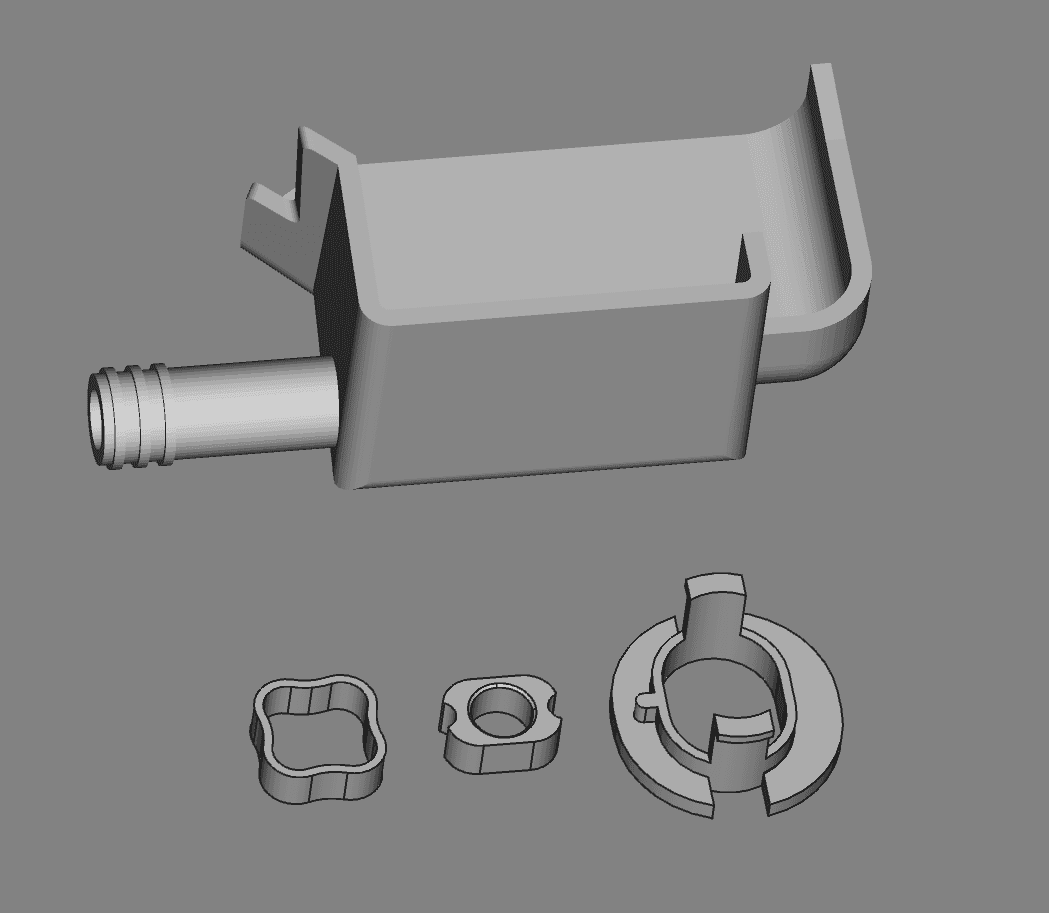

Multi-part sunroof repair kit for the Land Rover Discovery 2. It includes the outer sliding guide, guide bushing, screw spacer, and right-hand drain corner used to restore guidance, spacing, and drainage in the sunroof mechanism.
