Blower-Motor Removal Tool
REPLACES OEM412-140
ABS · NylonMULTI-PART7 FILESCC-BYMechanical
Loading 3D viewer...
CARGO ID · LR-3D / 0144QTY 7 · STLHANDLE · NO SUPPORTS
Field photographs6 PLATES
PLATE 01 / 06No caption recorded
Cargo manifestMAN-0144
- [01]Volvo_Fan_-_Part_1.stlVolvo_Fan_-_Part_1.stl.STL
- [02]Volvo_Fan_-_Part_2.stlVolvo_Fan_-_Part_2.stl.STL
- [03]Volvo_Fan_-_Part_3.stlVolvo_Fan_-_Part_3.stl.STL
- [04]Volvo_Fan_-_Part_4.stlVolvo_Fan_-_Part_4.stl.STL
- [05]Volvo_Fan_-_Part_5.stlVolvo_Fan_-_Part_5.stl.STL
- [06]Volvo_Fan_-_Part_6.stlVolvo_Fan_-_Part_6.stl.STL
- [07]Volvo_Fan_-_Part_7_x2.stlVolvo_Fan_-_Part_7_x2.stl.STL
- [08]Bounding box135.061 × 105.000 × 94.000 mm
- [09]Volume122,449.115 mm³
Depot briefBY IAN HAMPTON (IANHAMPTON)

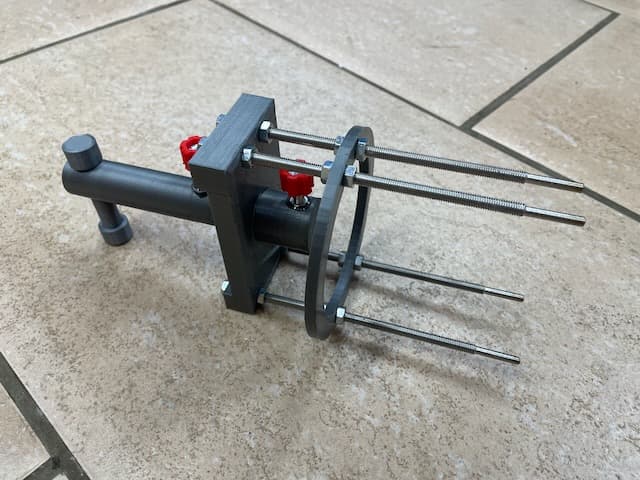

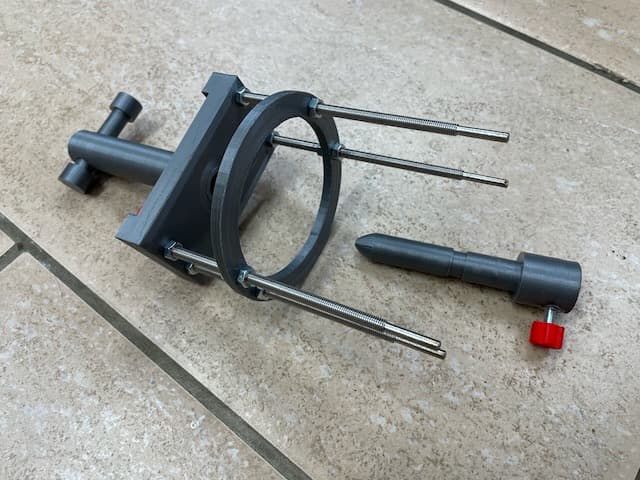

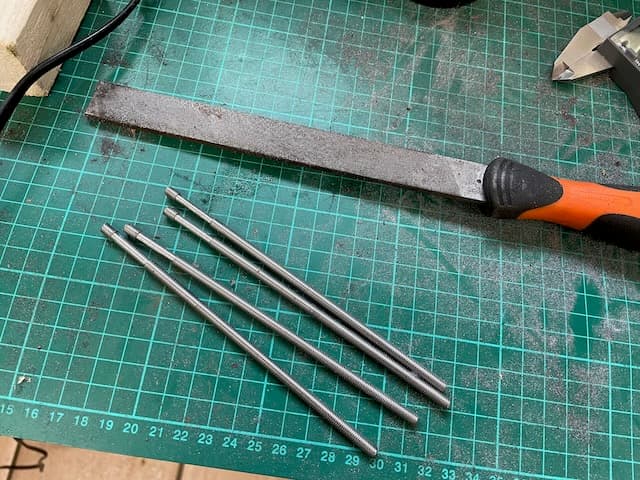

Multi-part workshop tool for removing and installing the cabin blower motor. It requires M5 threaded rod, nuts, bolts, and bonded inserts
