Brake Pipe Clip

PETG1 FILECC-BY-SAMechanical

Loading 3D viewer...

CARGO ID · LR-3D / 0012QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Cargo manifestMAN-0012
  • [01]brake-pipe-clip.STL
  • [02]Bounding box22.82 × 16.00 × 10.00 mm
  • [03]Volume1,252.51 mm³
Depot briefBY GUILLAUME BROUTON

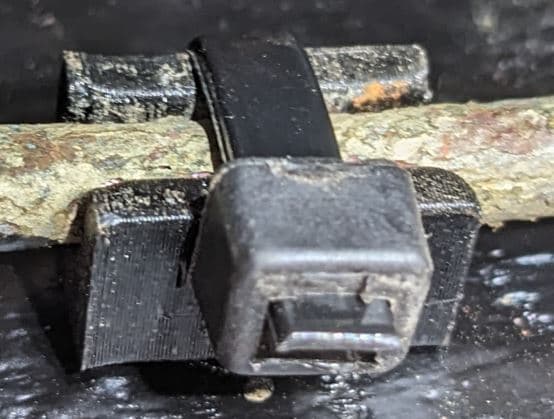

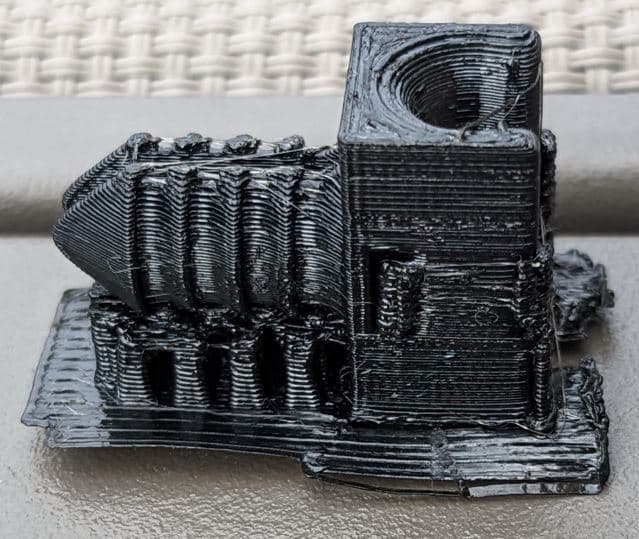

Clip to hold brake pipes to chassis for Defender TD5. It fits into existing 7mmØ holes in chassis and holds a 5mmØ brake pipe secured by a 4.7mm*1.3mm nylon cable tie. It's designed to be forced into the chassis with a hammer and strongly hold the brake pipe even without beeing secured by the cable tie, but be aware that brake pipes are quite sensible parts of a vehicle and may result to your death if not secured appropriately. Use this part at your own risk and check conditions of the brake pipe clip regularly.
