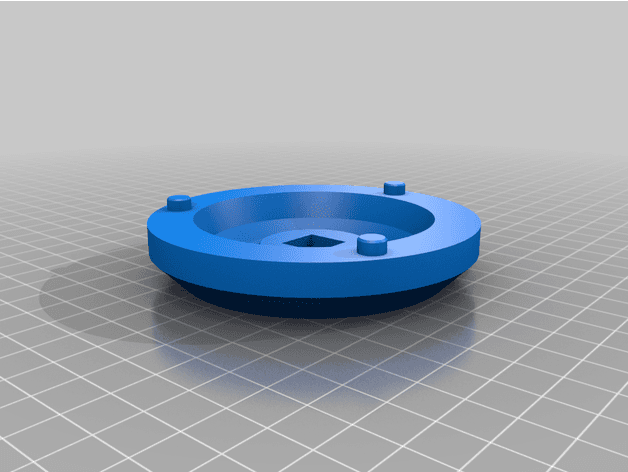

Crankshaft-Seal Installation Tool

ABS · Nylon1 FILECC-BYMechanical

Loading 3D viewer...

CARGO ID · LR-3D / 0194QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Cargo manifestMAN-0194
  • [01]PumaCrankSealTool.stl.STL
  • [02]Bounding box90.000 × 89.987 × 19.500 mm
  • [03]Volume61,428.264 mm³
Depot briefBY LCM 4X4 (LCM4X4)

Workshop tool for installing the front crankshaft seal on 2.2- and 2.4-litre Puma engines.

View original source ↗
