Double-DIN Stereo Binnacle

ABS · Nylon · PETGMULTI-PART5 FILESCC-BYDashboard

Loading 3D viewer...

CARGO ID · LR-3D / 0165QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs8 PLATES

PLATE 01 / 08No caption recorded

Cargo manifestMAN-0165

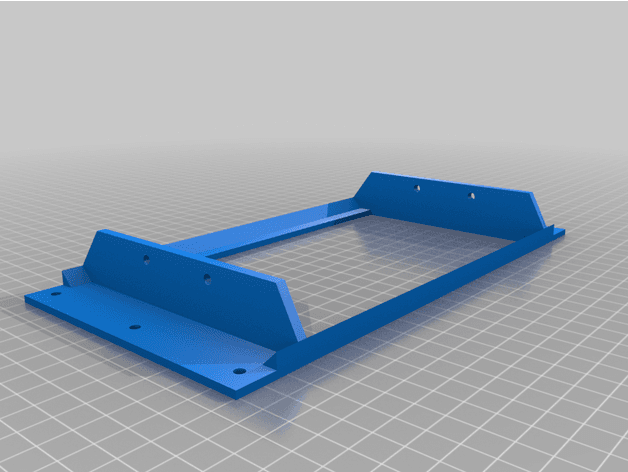

[01]Binacle_Center_Retainer_v1.2.stlBinacle_Center_Retainer_v1.2.stl.STL

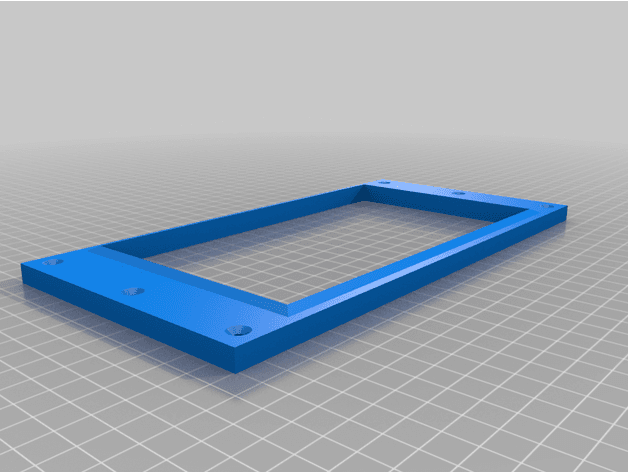

[02]Binacle_Front_Plate_v1.1_Thicker_Bezle.stlBinacle_Front_Plate_v1.1_Thicker_Bezle.stl.STL

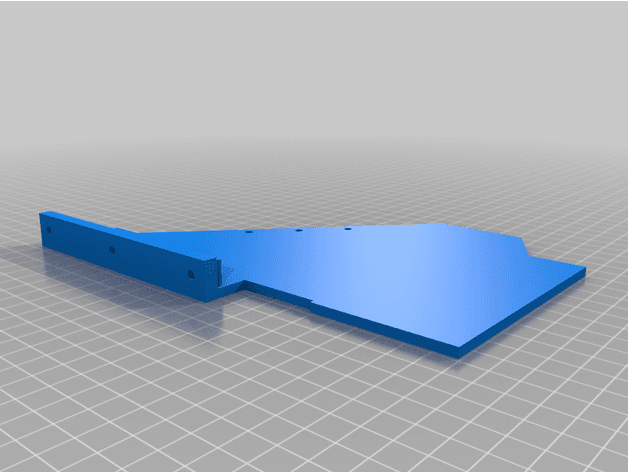

[03]Binnacle_Side_Plate_v1.1_LH.stlBinnacle_Side_Plate_v1.1_LH.stl.STL
[04]Binnacle_Side_Plate_v1.1_RH.stlBinnacle_Side_Plate_v1.1_RH.stl.STL
[05]Binnacle_Vent_Rail_v1.1.stlBinnacle_Vent_Rail_v1.1.stl.STL
[06]Bounding box240.000 × 152.000 × 79.014 mm
[07]Volume374,442.082 mm³

Depot briefBY MICHAEL BROOKER (MBROOKER)

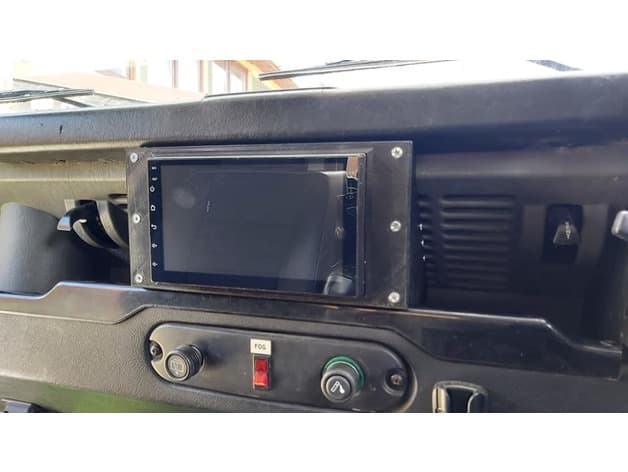

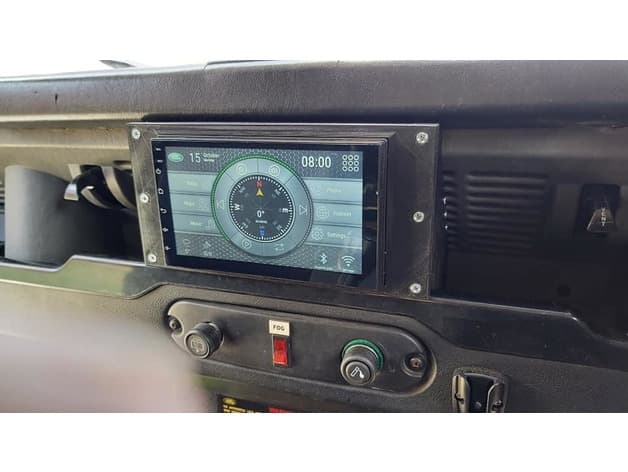

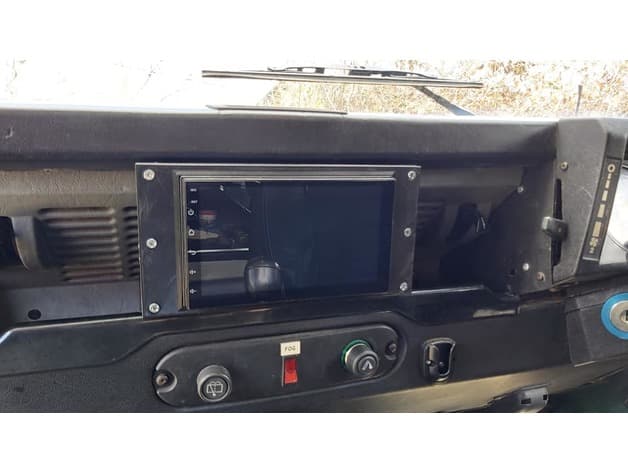

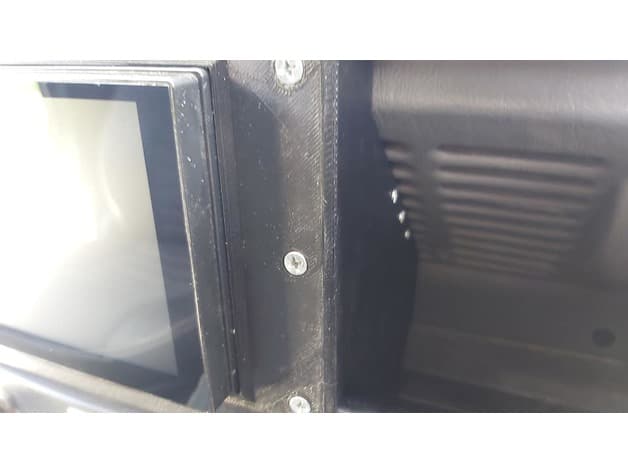

Five-piece double-DIN stereo binnacle for the pre-Td5 dashboard. Assembly uses twelve M4 countersunk bolts and twelve M4 nuts.
