Gauge LED Holders

ABS · PETGMULTI-PART2 FILESCC-BYDashboard

Loading 3D viewer...

CARGO ID · LR-3D / 0200QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs3 PLATES

PLATE 01 / 03No caption recorded

Cargo manifestMAN-0200

[01]plugforled_loose.stlplugforled_loose.stl.STL
[02]plugforled_tight.stlplugforled_tight.stl.STL
[03]Bounding box50.500 × 25.500 × 20.000 mm
[04]Volume5,665.163 mm³

Depot briefBY ERASER

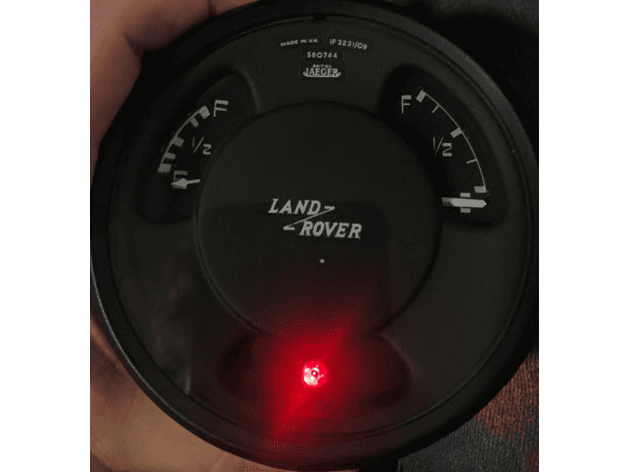

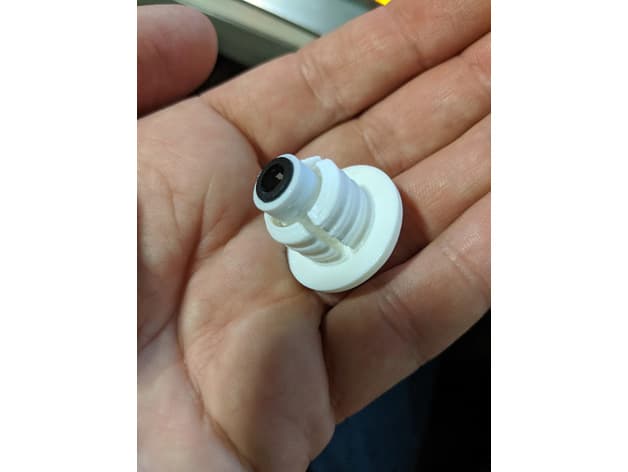

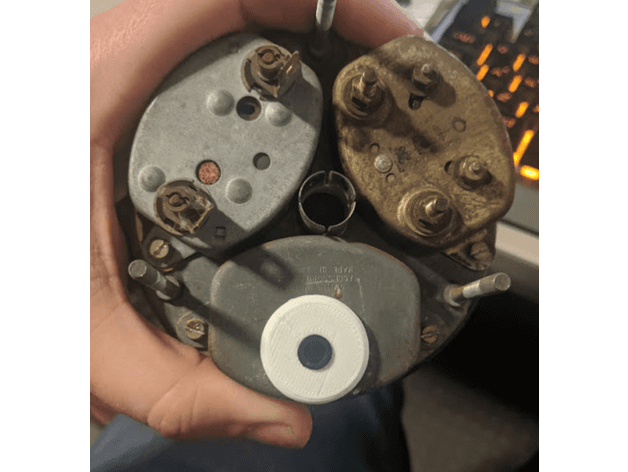

Loose- and tight-fit holders for fitting a 5 mm 12-volt LED and panel-mount bezel into a 16 mm Jaeger or Smiths gauge opening. The creator notes that the tight version may break during removal and suggests optional hot glue after installing the LED.
