Parcel-Shelf Eyelet Repair
ABS · Nylon · PETGMULTI-PART4 FILESCC-BYTrim Clips
Loading 3D viewer...
CARGO ID · LR-3D / 0102QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs3 PLATES
PLATE 01 / 03No caption recorded
Cargo manifestMAN-0102
- [01]BottomLHS.stlBottomLHS.stl.STL
- [02]BottomRHS.stlBottomRHS.stl.STL
- [03]TopLHS.stlTopLHS.stl.STL
- [04]TopRHS.stlTopRHS.stl.STL
- [05]Bounding box71.500 × 38.774 × 38.000 mm
- [06]Volume21,484.418 mm³
Depot briefBY MARK KIRKBRIDE (HOWZEDBRA)

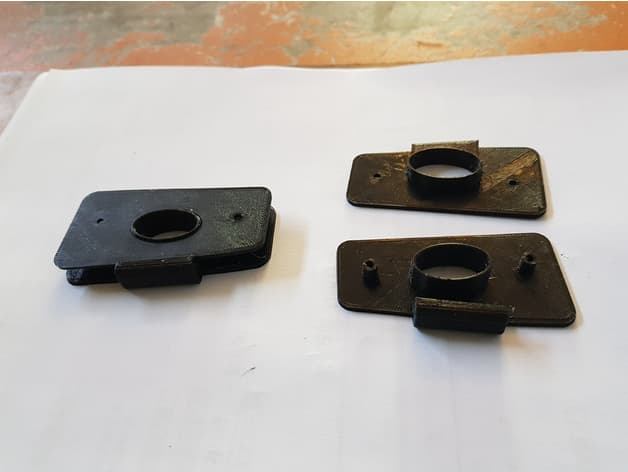

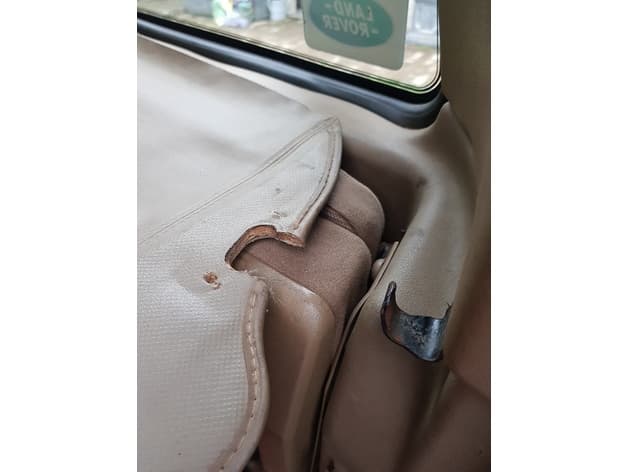

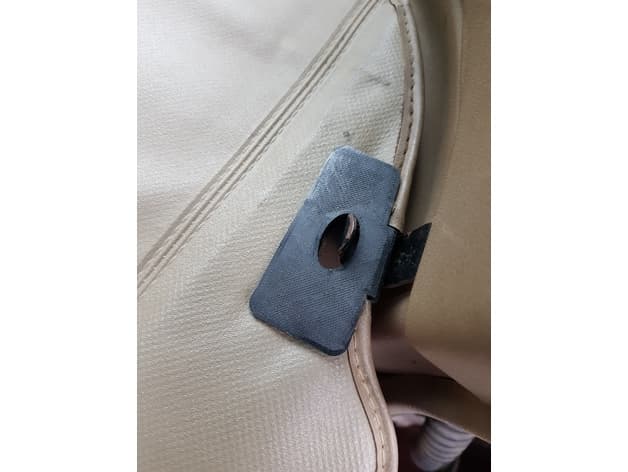

Bolt-on repair pieces for parcel-shelf eyelets that have torn through. Requires trimming the shelf and two M3 x 7 mm fasteners
