Rear Seat Air Vent Grille

ABS · PETG1 FILE0 DOWNLOADSCC-BY-NCCabin trim, cargo & roof Cover Rear Repair part

Loading 3D viewer...

CARGO ID · LR-3D / 2544QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs2 PLATES

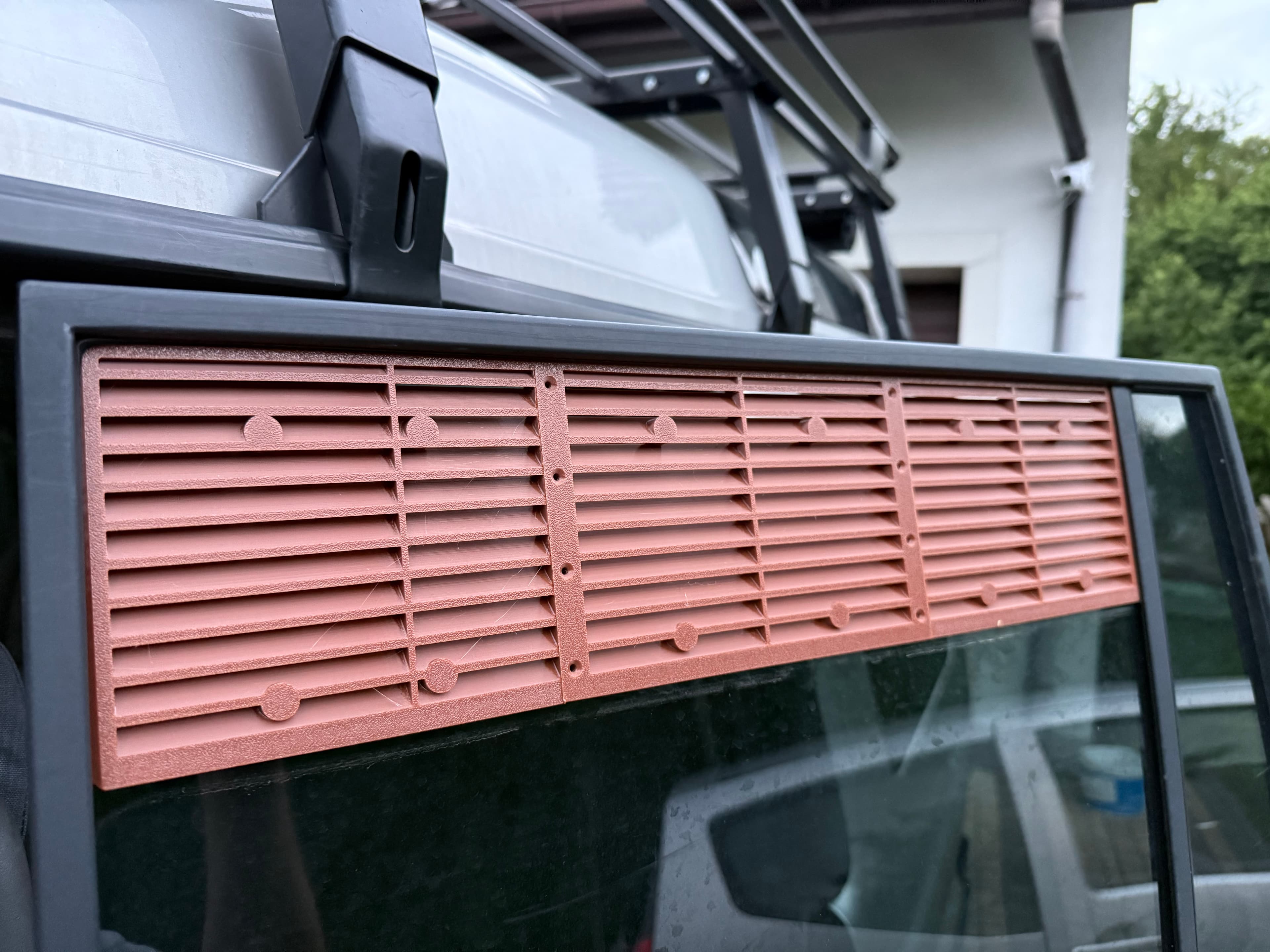

Rear Seat Air Vent Grille — image 1 of 2

PLATE 01 / 02No caption recorded

Cargo manifestMAN-2544

[01]window-vent-grill_td5_3rd_fan_mount_fix.stlwindow-vent-grill_td5_3rd_fan_mount_fix.stl.STL
[02]Bounding box160.000 × 131.047 × 9.998 mm
[03]Volume78,839.929 mm³

Depot briefBY MICRO GURU

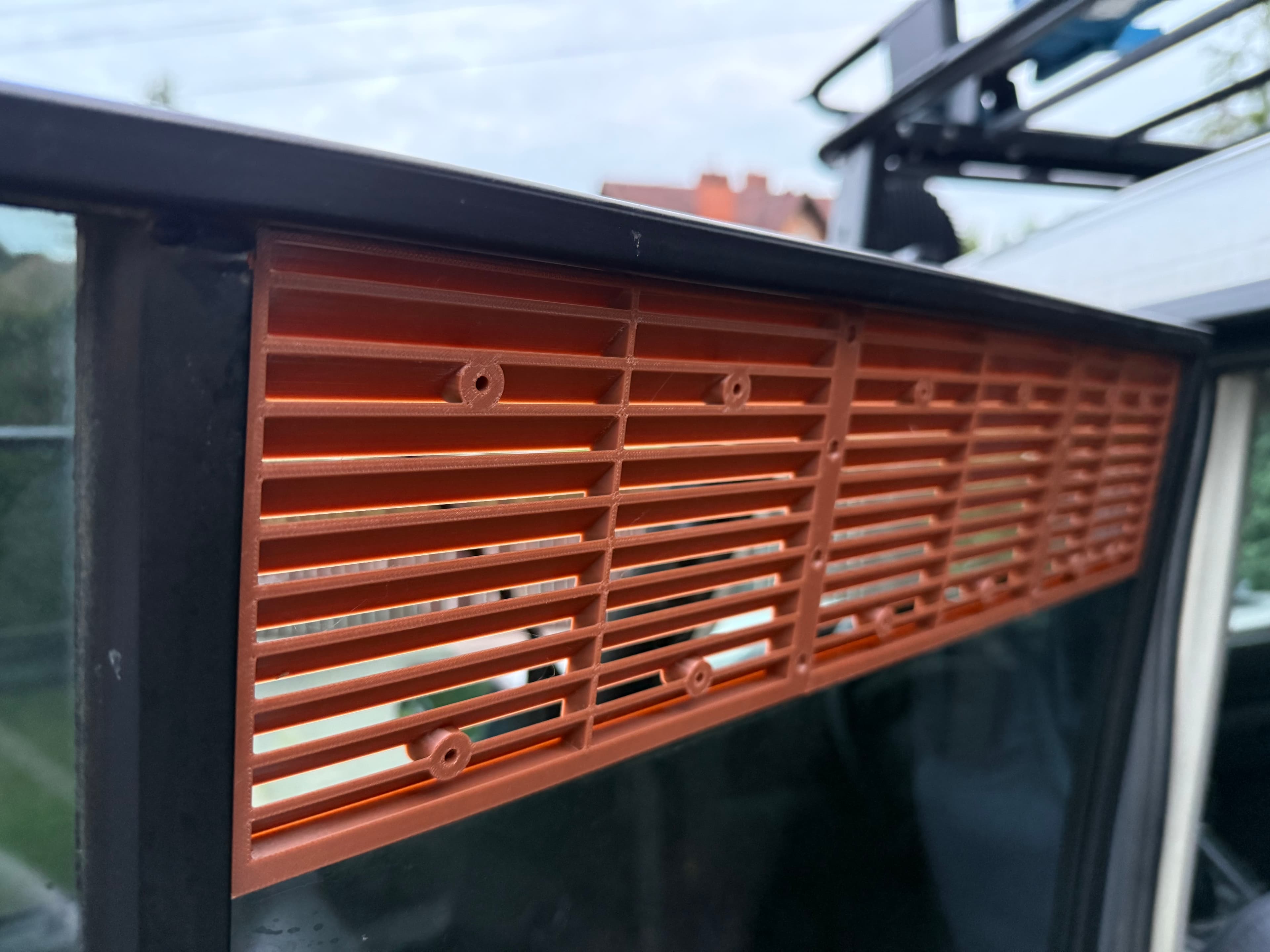

Third-section replacement grille for the rear-seat window ventilation opening on the Land Rover Discovery 2. It covers and protects the vent opening while maintaining airflow. This corrected third-section file is separate from the first and middle grille sections.
