Rear Seat Row Handle Cover

REPLACES OEMHXG500240 · HXG500260

ABS · PETGMULTI-PART5 FILES0 DOWNLOADSCC-BY-NC-SASeats & restraints Cover Rear Repair part

Loading 3D viewer...

CARGO ID · LR-3D / 2542QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs4 PLATES

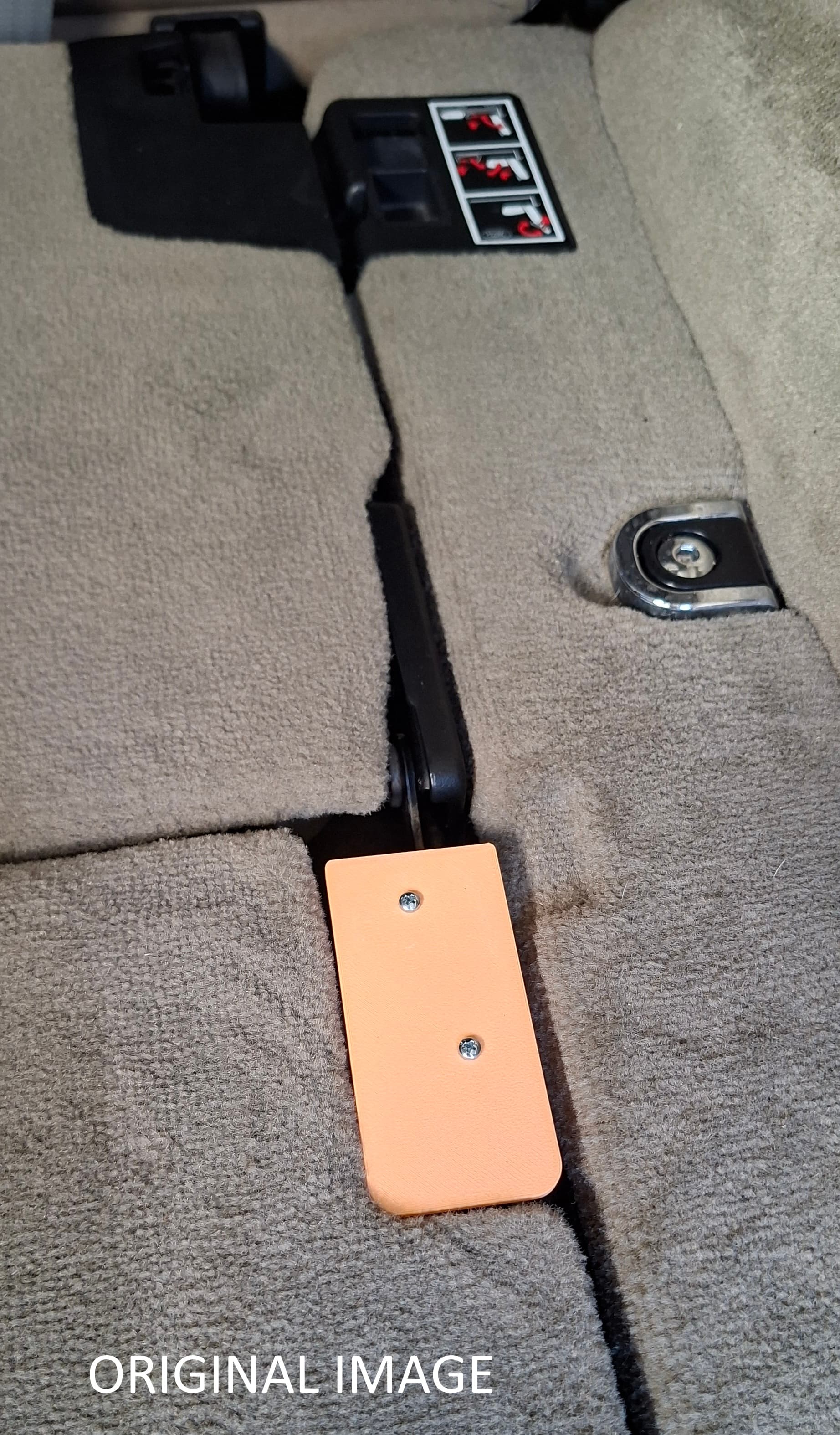

Rear Seat Row Handle Cover — image 1 of 4

PLATE 01 / 04No caption recorded

Cargo manifestMAN-2542

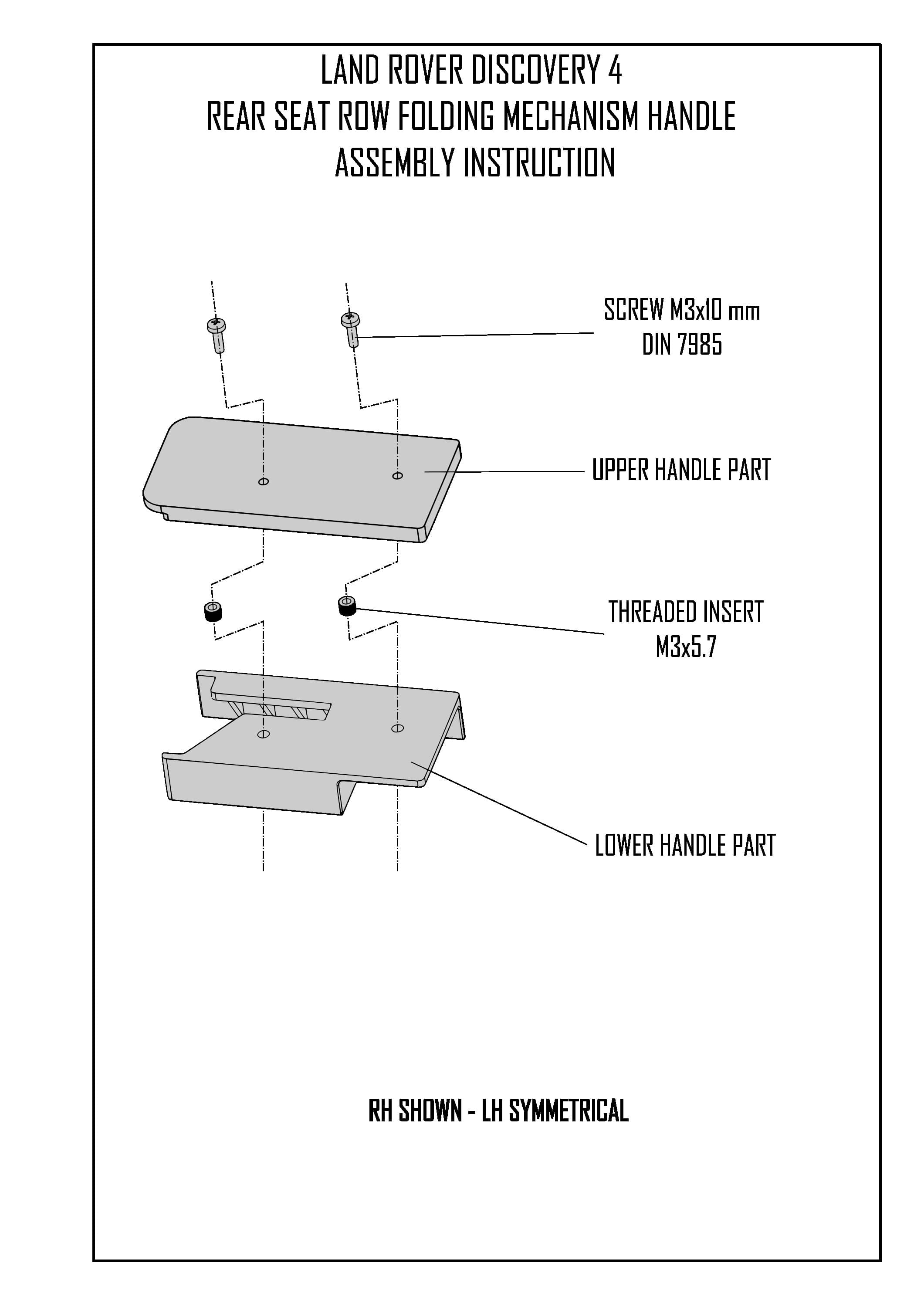

[01]LH and RH cover assy.3mfLH and RH cover assy.3mf.STL
[02]lower part LH.stllower part LH.stl.STL
[03]lower part RH.stllower part RH.stl.STL
[04]upper part LH.stlupper part LH.stl.STL
[05]upper part RH.stlupper part RH.stl.STL
[06]Bounding box302.693 × 213.026 × 18.000 mm
[07]Volume149,254.603 mm³

Depot briefBY DANIEL LAISTER (ME)

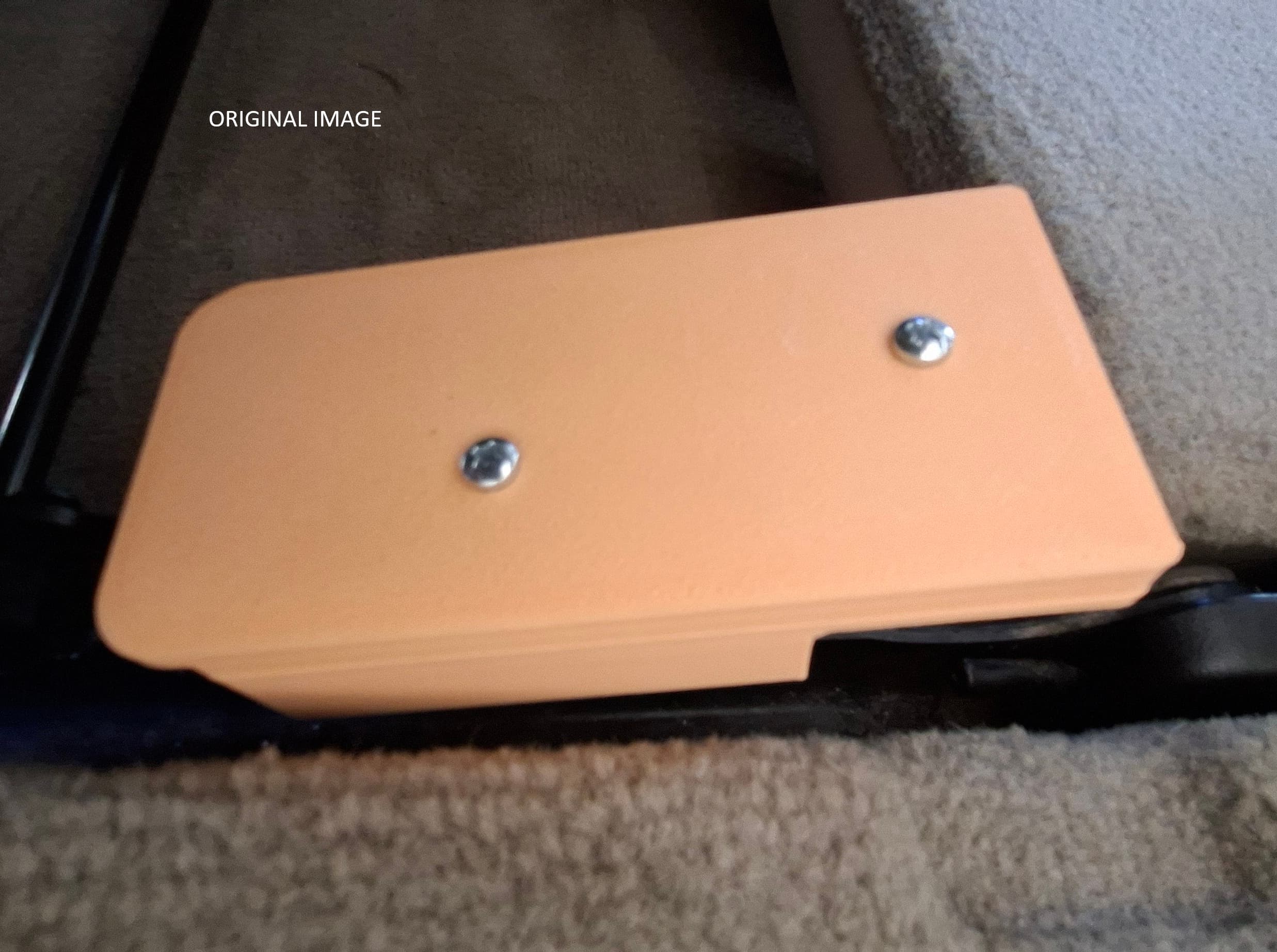

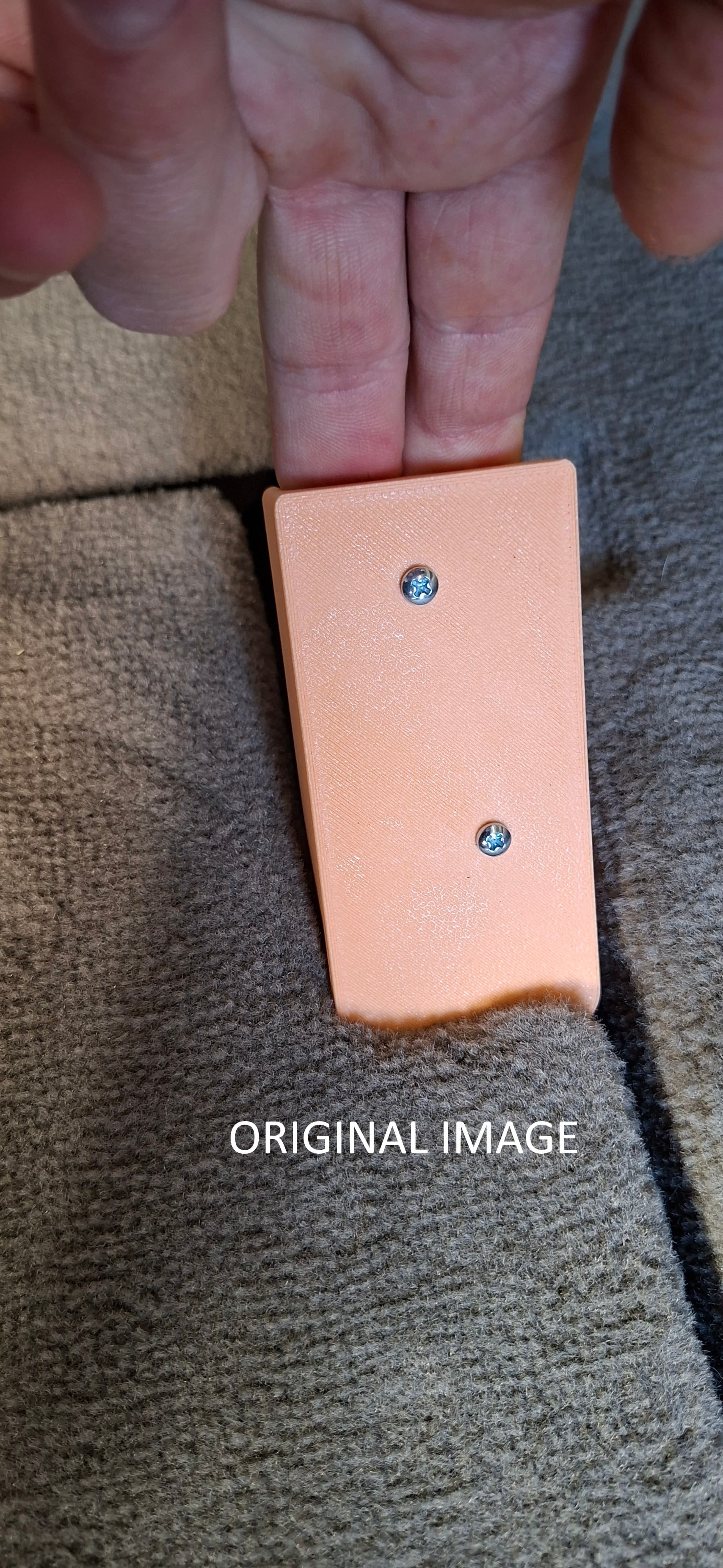

This 3D-printed seat lever cover is designed as a replacement cover for the seat-folding lever mechanism used for the 6th and 7th passenger seats. It provides a neat, durable solution when the original plastic cover is damaged, missing or worn.
