Window-Regulator Gear and Roller

ABS · Nylon · PETGMULTI-PART3 FILESCC-BYDoors

Loading 3D viewer...

CARGO ID · LR-3D / 0107QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs6 PLATES

PLATE 01 / 06No caption recorded

Cargo manifestMAN-0107

[01]window_motor_coupling.stlwindow_motor_coupling.stl.STL
[02]window_motor_coupling_slotted.stlwindow_motor_coupling_slotted.stl.STL
[03]window_roller_guide.stlwindow_roller_guide.stl.STL
[04]Bounding box125.498 × 49.900 × 10.518 mm
[05]Volume25,400.462 mm³

Depot briefBY CLÉMENT BÉRARD (BEDZPLANE)

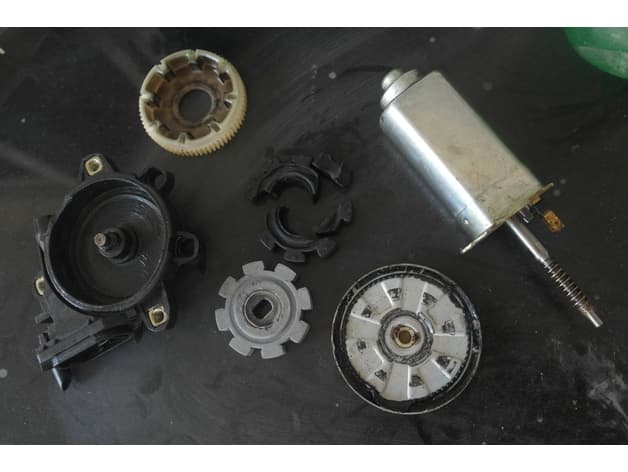

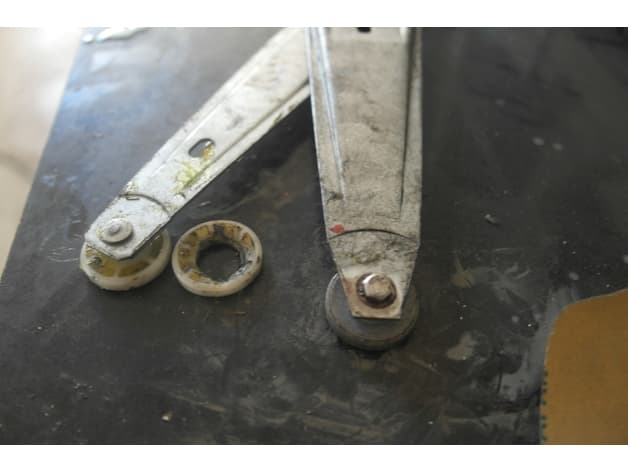

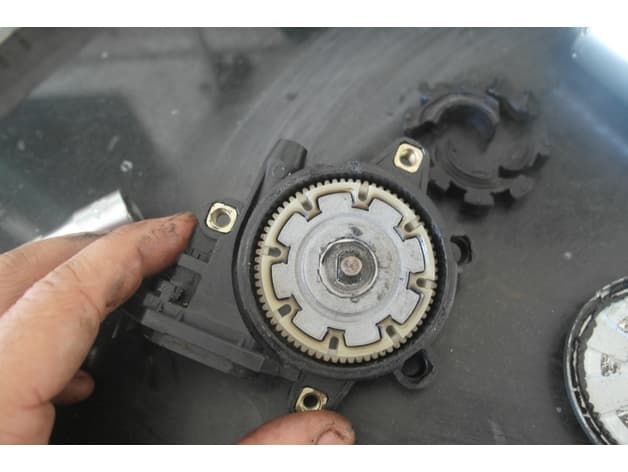

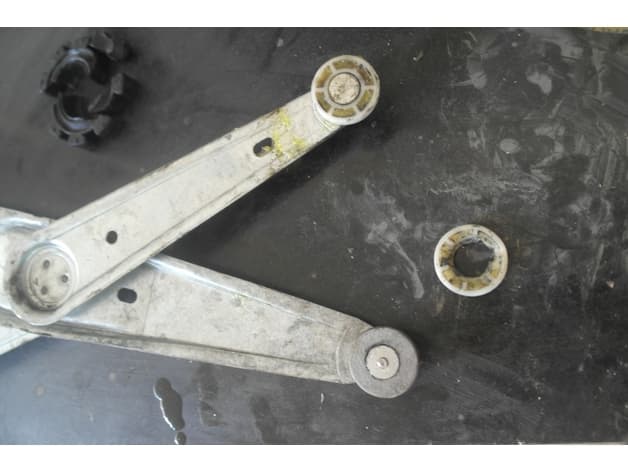

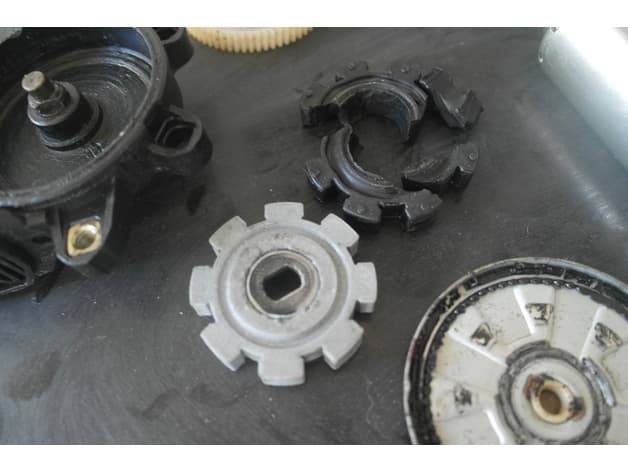

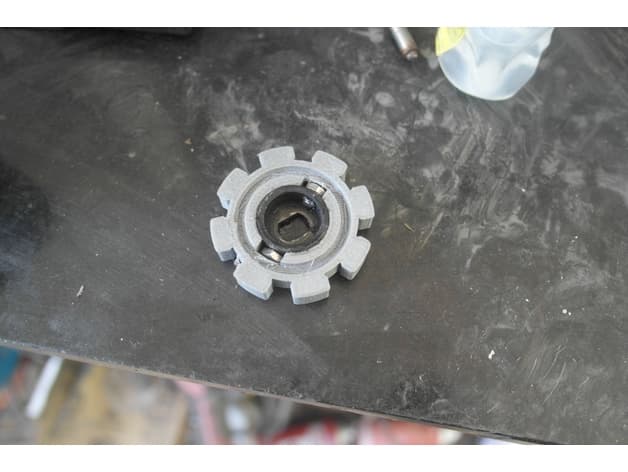

Repair set for later window-regulator motor assemblies, including gear-coupler and roller options. Some versions require drilling and tapping the original steel hub or roller shaft

View original source ↗
