Brake-Shoe Steady-Post Bush

REPLACES OEM607808

ABS · Nylon1 FILECC-BYMechanical

Loading 3D viewer...

CARGO ID · LR-3D / 0147QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs2 PLATES

PLATE 01 / 02No caption recorded

Cargo manifestMAN-0147

[01]Brake_Steady_Post_Bush.stlBrake_Steady_Post_Bush.stl.STL
[02]Bounding box15.000 × 15.000 × 13.000 mm
[03]Volume1,916.395 mm³

Depot briefBY KYLE GORDON (KYLECGORDON)

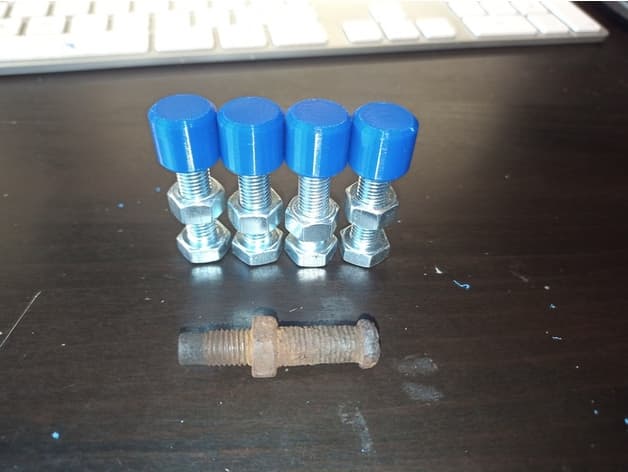

Replacement bush used with a standard 5/16-inch bolt and locking nut to align the brake shoes. Tap the printed bore to suit the bolt thread and follow the source adjustment method.

View original source ↗
