Air-Duct Vacuum Nozzle

ABS · PETGMULTI-PART2 FILESCC-BYDashboard

Loading 3D viewer...

CARGO ID · LR-3D / 0057QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs6 PLATES

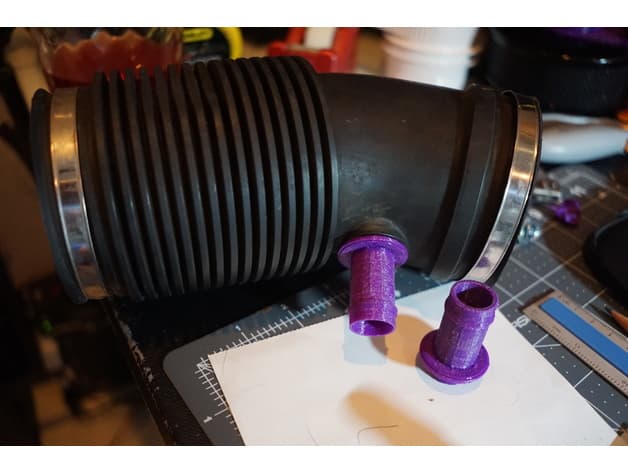

PLATE 01 / 06No caption recorded

Cargo manifestMAN-0057

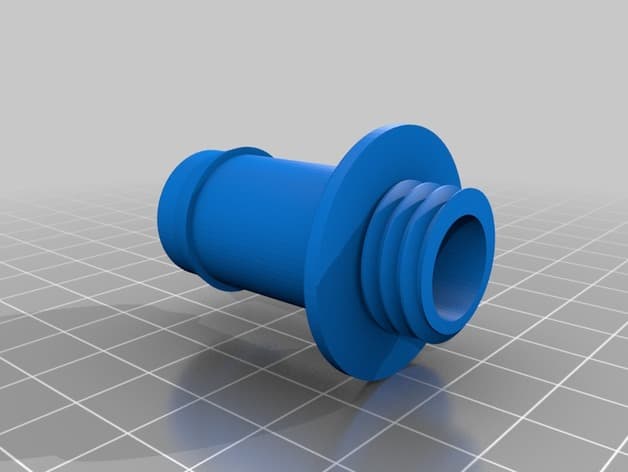

[01]Air_duct_Vacuum_v2_Screw_in.stlAir_duct_Vacuum_v2_Screw_in.stl.STL

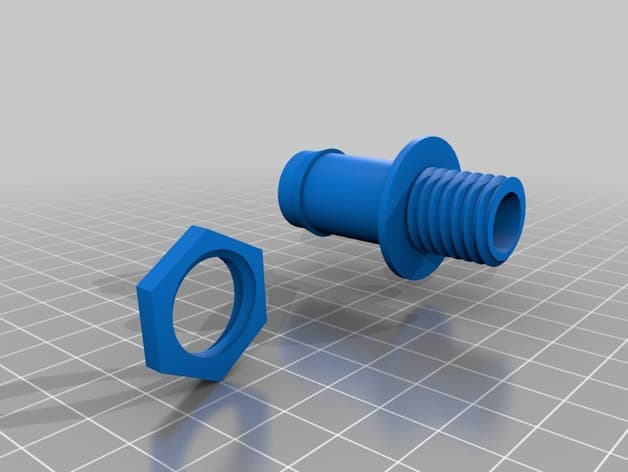

[02]Air_duct_Vacuum_v7_Long_Thread.stlAir_duct_Vacuum_v7_Long_Thread.stl.STL
[03]Bounding box125.629 × 52.500 × 33.952 mm
[04]Volume10,095.375 mm³

Depot briefBY OLLI RITA (GRUMPYFINN)

Replacement nozzle for the cabin air duct, supplied in screw-in and long-thread versions for differently damaged mounting holes. The source recommends printing upright in PETG.

View original source ↗
