Roof-Rail Eyelet Mount

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-SABody

Loading 3D viewer...

CARGO ID · LR-3D / 0084QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs4 PLATES

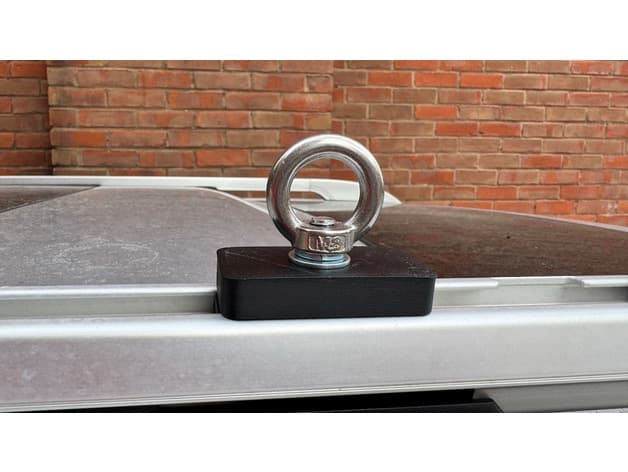

PLATE 01 / 04No caption recorded

Cargo manifestMAN-0084

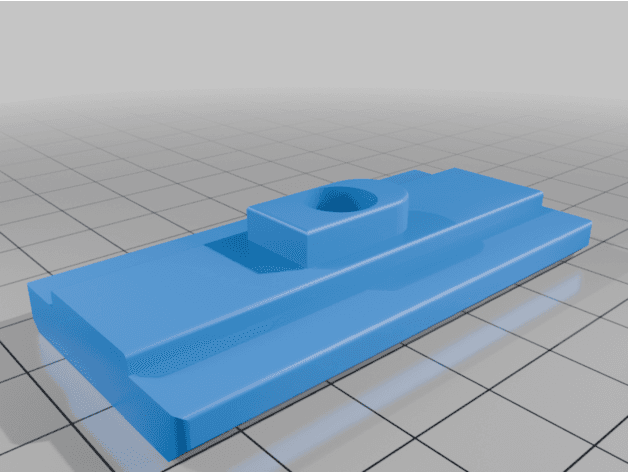

[01]Rail_Slider_v6.stlRail_Slider_v6.stl.STL

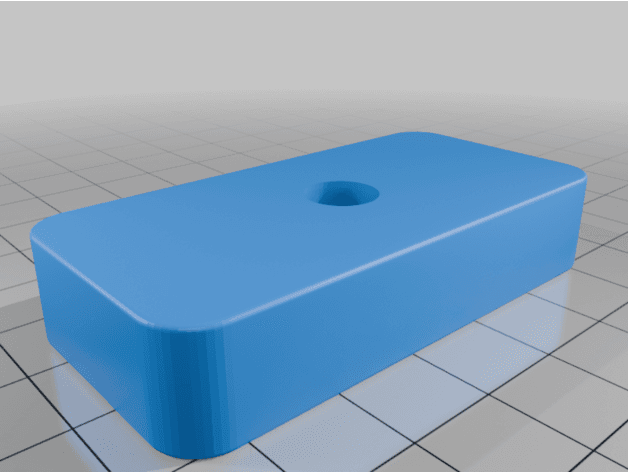

[02]Rail_Spacer_v3.stlRail_Spacer_v3.stl.STL
[03]Bounding box60.000 × 30.000 × 23.000 mm
[04]Volume29,921.753 mm³

Depot briefBY TWENTY2A

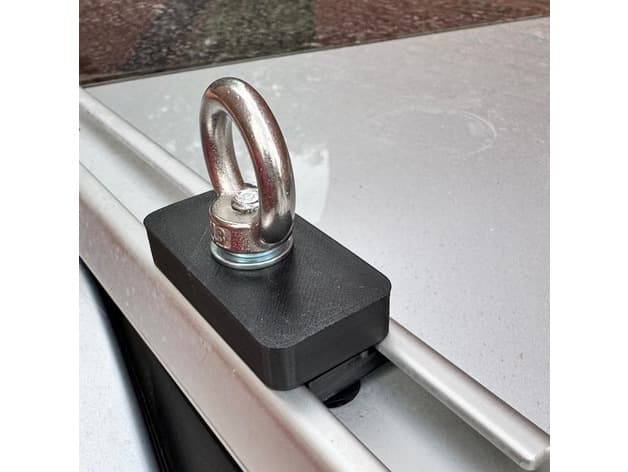

Two-part eyelet mount that clamps around a factory roof rail using common M8 hardware. The source recommends PETG, 20% infill, doubled infill lines, and three walls. Use only for light-duty restraint and never as a rated recovery or lifting point.

View original source ↗
