Glovebox-Damper Repair Clip

REPLACES OEMLR039802

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYDashboard

Loading 3D viewer...

CARGO ID · LR-3D / 0138QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs6 PLATES

PLATE 01 / 06No caption recorded

Cargo manifestMAN-0138

[01]LR_Damper_Body.stlLR_Damper_Body.stl.STL
[02]LR_Damper_Lock.stlLR_Damper_Lock.stl.STL
[03]Bounding box43.666 × 35.464 × 33.389 mm
[04]Volume7,121.97 mm³

Depot briefBY SERGEI MEREKIN (STEFF_3D)

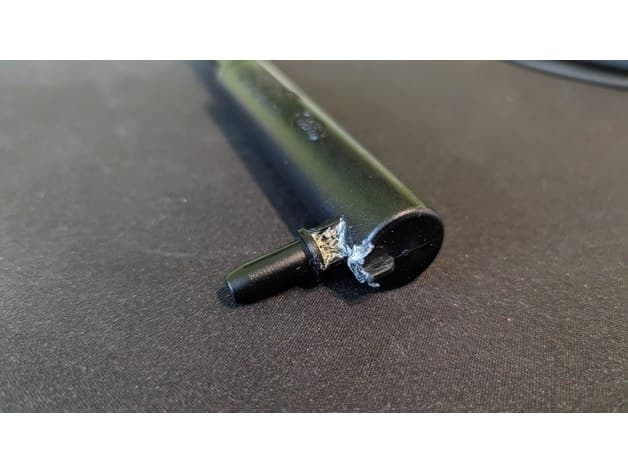

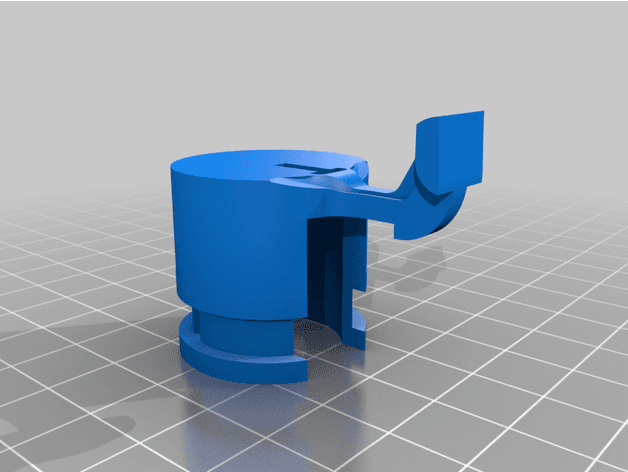

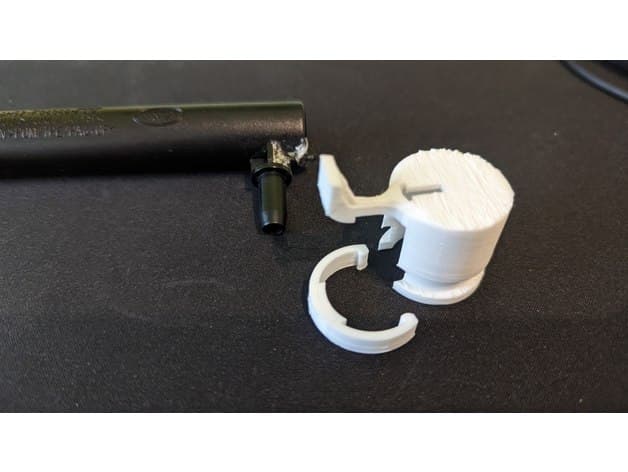

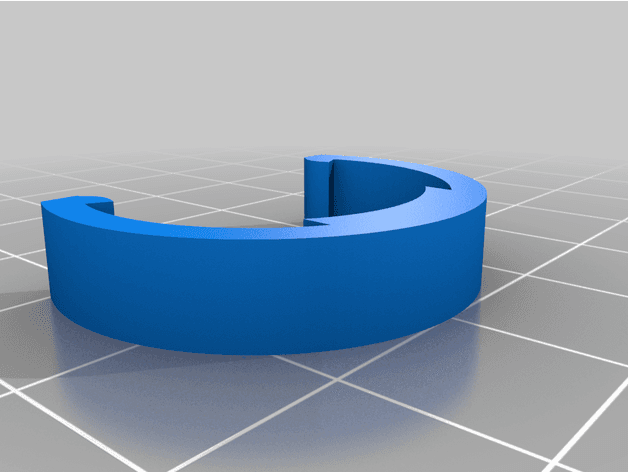

Two-piece overlay repair for a broken glovebox-damper attachment. The body clips over the damaged damper and a half-ring lock provides additional retention.

View original source ↗
