Indicator-or-Sidelight Bulb Socket

REPLACES OEM37H5452

ABS · Nylon · PETGMULTI-PART3 FILESCC-BY-SALights

Loading 3D viewer...

CARGO ID · LR-3D / 0159QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs4 PLATES

PLATE 01 / 04No caption recorded

Cargo manifestMAN-0159

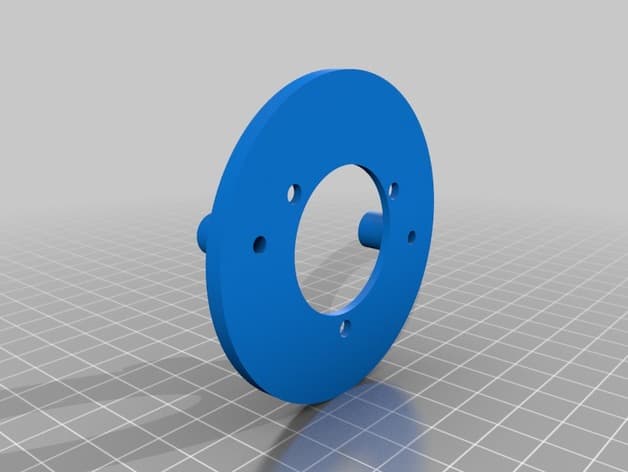

[01]base33mm.stlbase33mm.stl.STL

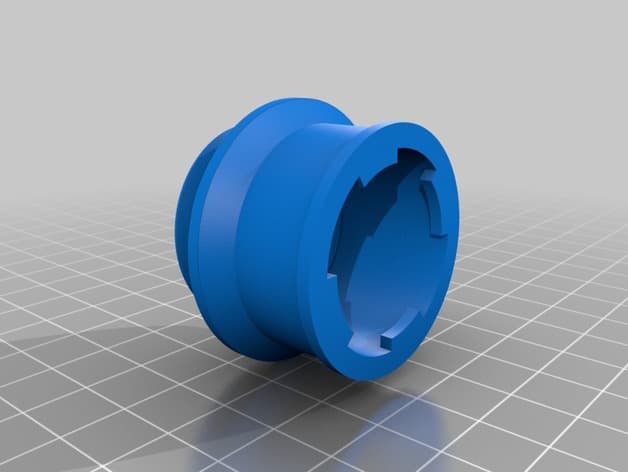

[02]fassung33mm.stlfassung33mm.stl.STL

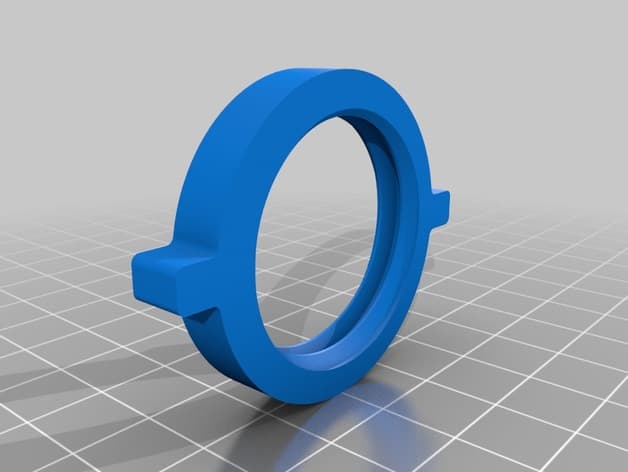

[03]mutter33mm.stlmutter33mm.stl.STL
[04]Bounding box72.000 × 71.992 × 50.000 mm
[05]Volume21,260.209 mm³

Depot briefBY MARC REUS (MARCREUS)

Three-part replacement socket assembly for an indicator or position lamp using a separate single-contact bulb holder. Verify the 33 mm housing fit, wiring, insulation, and weather sealing.

View original source ↗
