Loadspace-Cover Locating Pin

REPLACES OEMEPN000020PUY

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCTrim Clips

Loading 3D viewer...

CARGO ID · LR-3D / 0133QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs2 PLATES

PLATE 01 / 02No caption recorded

Cargo manifestMAN-0133

[01]pin_shtorka_bagaznika.STLpin_shtorka_bagaznika.STL.STL
[02]pin_shtorka_bagaznika_11x11.STLpin_shtorka_bagaznika_11x11.STL.STL
[03]Bounding box139.000 × 18.000 × 17.000 mm
[04]Volume11,906.518 mm³

Depot briefBY ANTON (ADENIS)

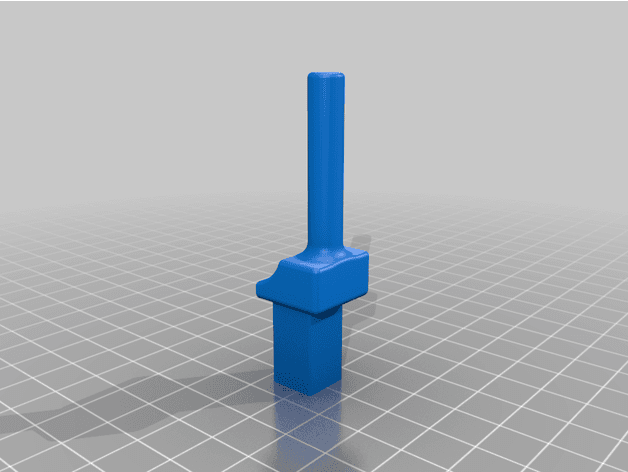

Two replacement locating-pin variants for the loadspace cover: one for an M8 opening and one for the original 11 × 11 mm square opening. Print horizontally to reduce delamination risk.

View original source ↗
