Land Rover Range Rover L322 3D-printable parts

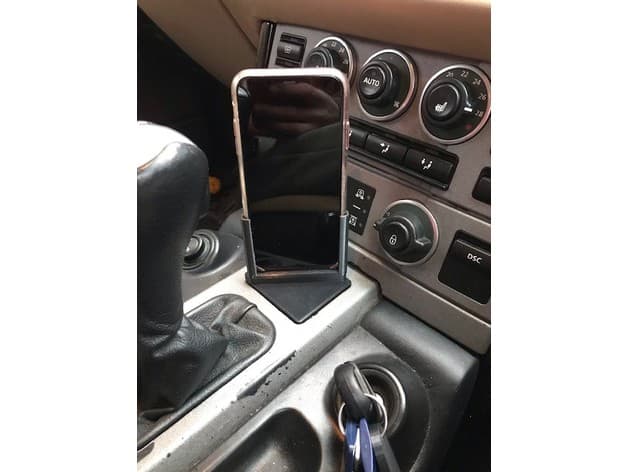

Phone holder designed to sit in the front coin tray, sized around an iPhone 11 in an Apple case. Confirm phone and tray dimensions before printing and use a heat-resistant cabin material.

Replacement push clip for the front cowl and wiper-panel cover on 2002–2009 vehicles. Use a flexible, weather-resistant material and compare dimensions with an original clip before fitting.

It fits in front of the ignition-switch, designed for the eezee power switch panel so it has a mounting surface of 68x115 mm and mirrored version for RHD vehicles

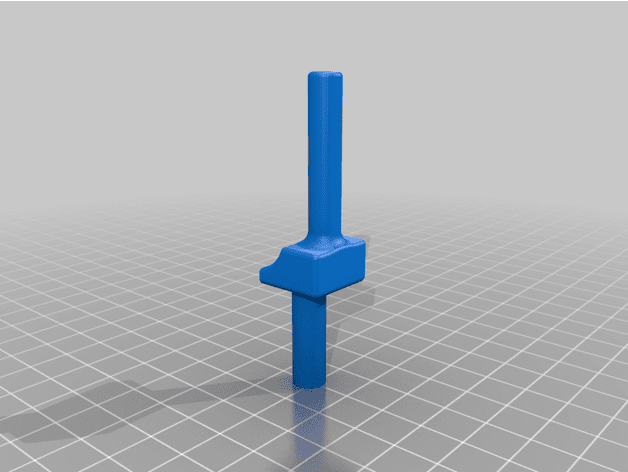

Two replacement locating-pin variants for the loadspace cover: one for an M8 opening and one for the original 11 × 11 mm square opening. Print horizontally to reduce delamination risk.

Replacement end piece for a longitudinal roof rail.

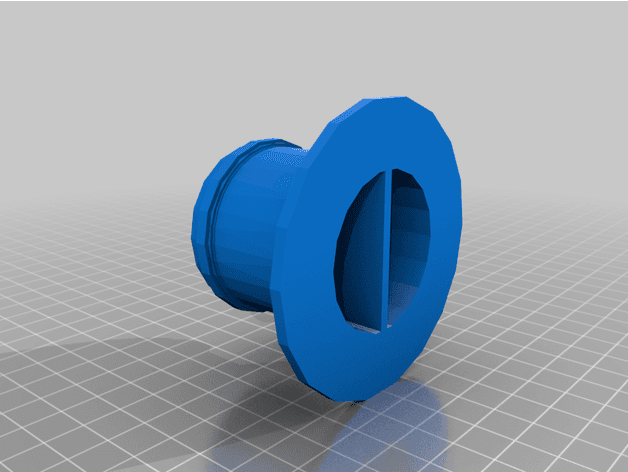

Protective bung for a factory Westfalia detachable-towbar receiver, intended to keep dirt and moisture out when the hitch is removed. Check receiver dimensions before printing.

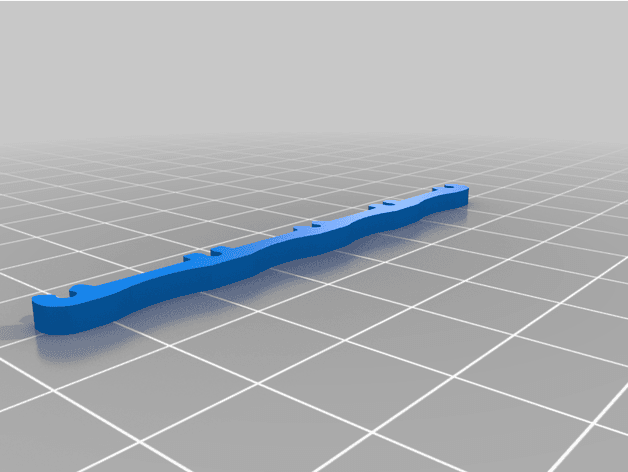

Replacement internal bar for a broken cabin heater and air-conditioning vent grille. Confirm vent position and dimensions against the original before printing.

Two-part holder and lid for mounting a Nexus 9 tablet in a 2002–2012 dashboard installation, suitable for an Android Auto client or other tablet-based interface. Editable OpenSCAD sources are included.

Replacement retaining clip for the plastic wind deflector mounted beneath each front wiper arm on 2002–2012 vehicles. Use a weather- and UV-resistant material.

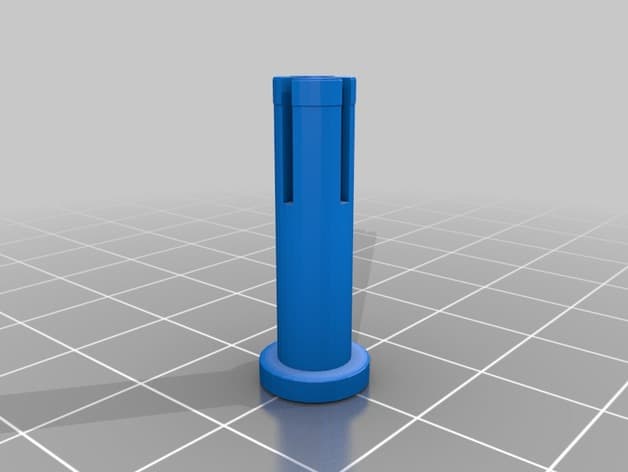

Adapter that allows compatible standard 22-inch wiper blades to fit the L322 front wiper arm without additional hardware. The source recommends ABS, three perimeter walls, 40% infill, and supports.

Bolt-on adapter for the side-arm front wiper fitting used on 2003–2012 vehicles, converting it to accept a conventional cross-bar blade attachment. Includes editable OpenSCAD source.

Replacement captive clip for securing a number-plate screw when the original body clip is missing. The source recommends cutting the screw thread before installing the clip and using a tougher material than PLA.
