Land Rover Range Rover 3D-printable parts

Holds the seatbelt latch so it does not slide down past the shoulder. Universal to any seatbelt of standard width. (3MF file)

Workshop fitting tool for seating the rear hub seal squarely.

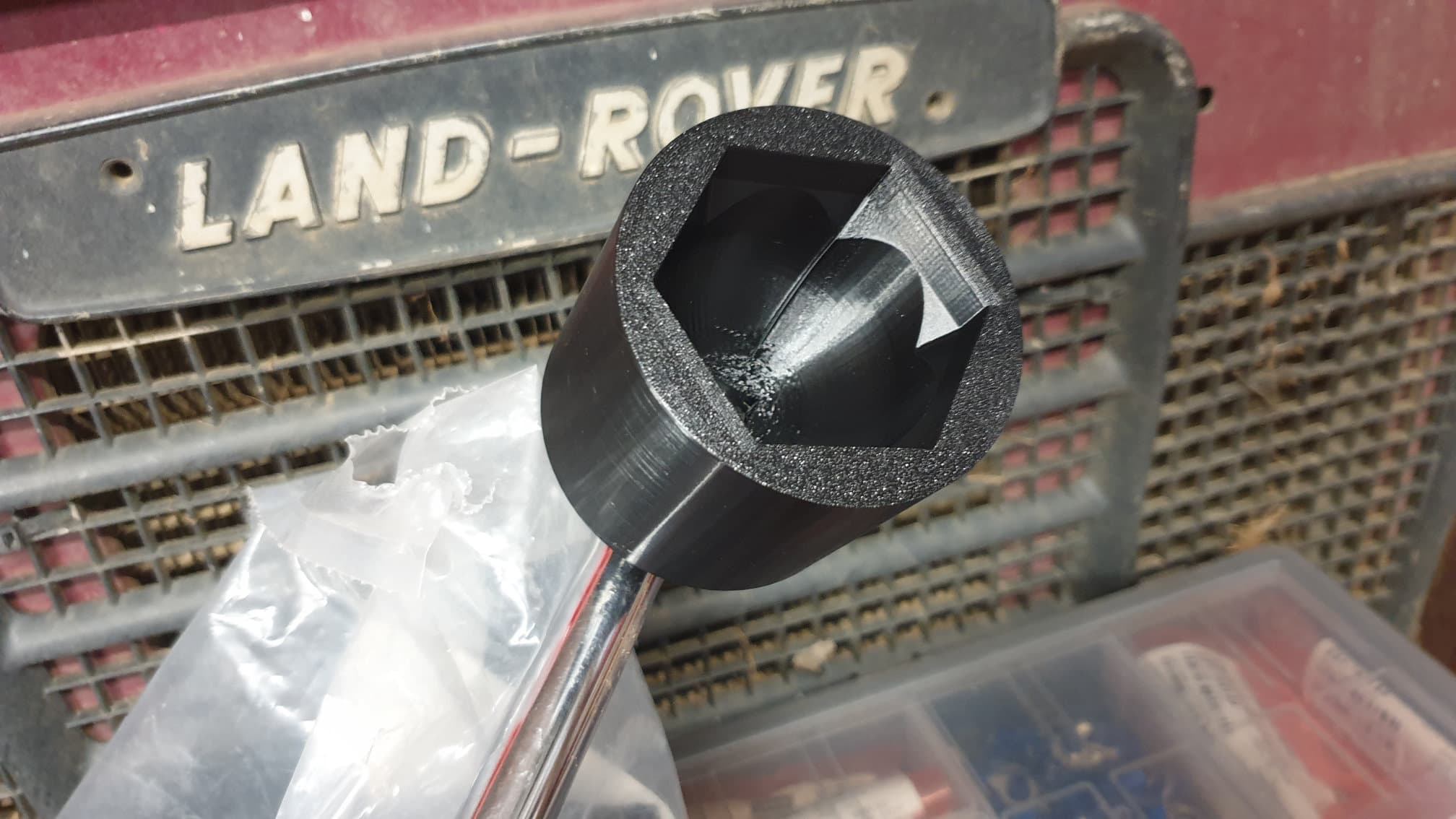

52mm hub nut socket for a wide range of Land Rover models. Most wheel bearings only need gentle torque - a few later models use the same nut but with huge torque and this likely won't work for those. 1/2" socket plus a 27mm (wheel nut) sized hex on the back. Designed to be printed without supports. Print in something robust.

Simplified, smaller front bumper corner for the full-size Range Rover Classic 200Tdi. Attaches using the original screw. Confirm side and dimensions against the vehicle before printing.

Simplified fixed replica of the original Range Rover Classic dashboard vent grille. The source model is based on a full-size Classic and is intended to be glued in place.

Replacement push clip for the front cowl and wiper-panel cover on 2002–2009 vehicles. Use a flexible, weather-resistant material and compare dimensions with an original clip before fitting.

Dashboard drinks holder for the Range Rover P38, based on genuine Land Rover accessory LRN32685 with printability changes and an added tray for pens and coins.

It fits in front of the ignition-switch, designed for the eezee power switch panel so it has a mounting surface of 68x115 mm and mirrored version for RHD vehicles

Stable funnel that sleeves over the 18 mm AdBlue filler tube and rests on the adjacent air intake. It has approximately half-litre capacity, 3 mm debris-filter holes, an air-escape tube to prevent glugging, and a measured gravity-flow rate of about two litres per minute. A separate 1.7-litre pouring jug is included.

Two replacement locating-pin variants for the loadspace cover: one for an M8 opening and one for the original 11 × 11 mm square opening. Print horizontally to reduce delamination risk.

Replacement end piece for a longitudinal roof rail.

Protective bung for a factory Westfalia detachable-towbar receiver, intended to keep dirt and moisture out when the hitch is removed. Check receiver dimensions before printing.

Replacement internal bar for a broken cabin heater and air-conditioning vent grille. Confirm vent position and dimensions against the original before printing.

Phone holder designed to sit in the front coin tray, sized around an iPhone 11 in an Apple case. Confirm phone and tray dimensions before printing and use a heat-resistant cabin material.

Two-part holder and lid for mounting a Nexus 9 tablet in a 2002–2012 dashboard installation, suitable for an Android Auto client or other tablet-based interface. Editable OpenSCAD sources are included.

Replacement retaining clip for the plastic wind deflector mounted beneath each front wiper arm on 2002–2012 vehicles. Use a weather- and UV-resistant material.

Adapter that allows compatible standard 22-inch wiper blades to fit the L322 front wiper arm without additional hardware. The source recommends ABS, three perimeter walls, 40% infill, and supports.

Bolt-on adapter for the side-arm front wiper fitting used on 2003–2012 vehicles, converting it to accept a conventional cross-bar blade attachment. Includes editable OpenSCAD source.

Replacement captive clip for securing a number-plate screw when the original body clip is missing. The source recommends cutting the screw thread before installing the clip and using a tougher material than PLA.

Top half of the twist-lock clip for P38 rubber floor mats. The upper retainer has no confirmed standalone Land Rover part number. Use ABS rather than brittle PLA. Converted the original ASCII STL to binary without changing its geometry for upload compatibility.

Replacement sunroof rail and locking bracket for the P38 electric sliding roof. Related genuine guide assemblies are EXM100360 (RH) and EXM100370 (LH)

Custom panel for a Range Rover P38 stock radio slot, holding auxiliary switches, the ride-height switch, and the interior-air-temperature sensor after relocating the original radio. This is a community accessory with no Land Rover Genuine part number. The source recommends printing the front panel flat on the bed at about 20% infill without supports.

Replacement door-panel/card retainer stud for the Range Rover P38 and Discovery 2. Corresponds to genuine Land Rover MWC9134

Reinforced replacement bonnet-release lever for a right-hand-drive Range Rover P38. Corresponds to Land Rover FSC10004
