AC Vent Louvre Repair Set

ABS · PETGMULTI-PART4 FILES0 DOWNLOADSCC-BY-NC-SADashboard & controls Repair part OEM replacement

Loading 3D viewer...

CARGO ID · LR-3D / 2553QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs4 PLATES

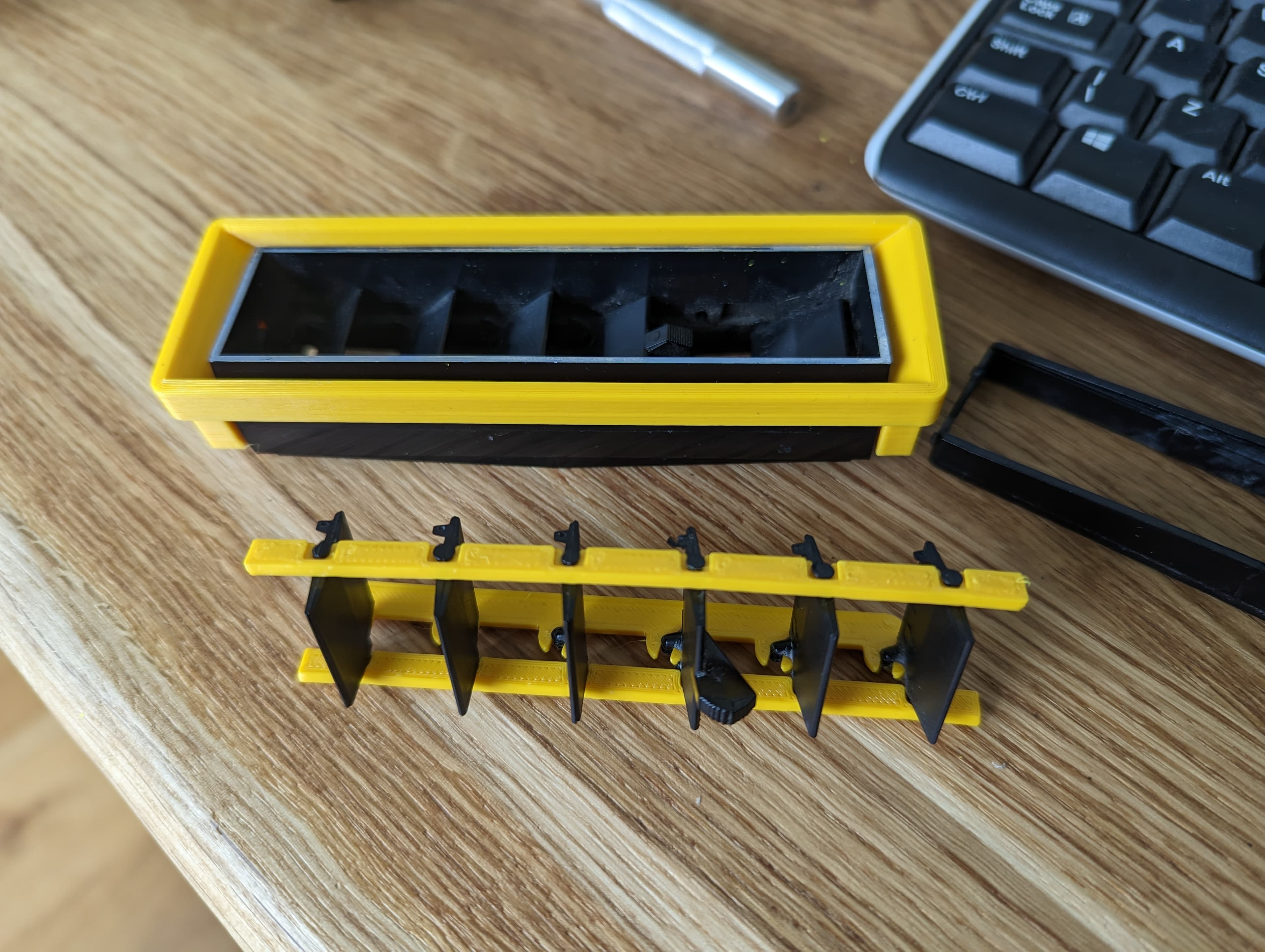

AC Vent Louvre Repair Set — image 1 of 4

PLATE 01 / 04No caption recorded

Cargo manifestMAN-2553

[01]AC vent louvre.stlAC vent louvre.stl.STL
[02]AC vent outer frame.stlAC vent outer frame.stl.STL
[03]AC vent alignment strip.stlAC vent alignment strip.stl.STL
[04]AC vent louvre clip rail.stlAC vent louvre clip rail.stl.STL
[05]Bounding box125.674 × 39.000 × 29.300 mm
[06]Volume15,888.412 mm³

Depot briefBY EZRA

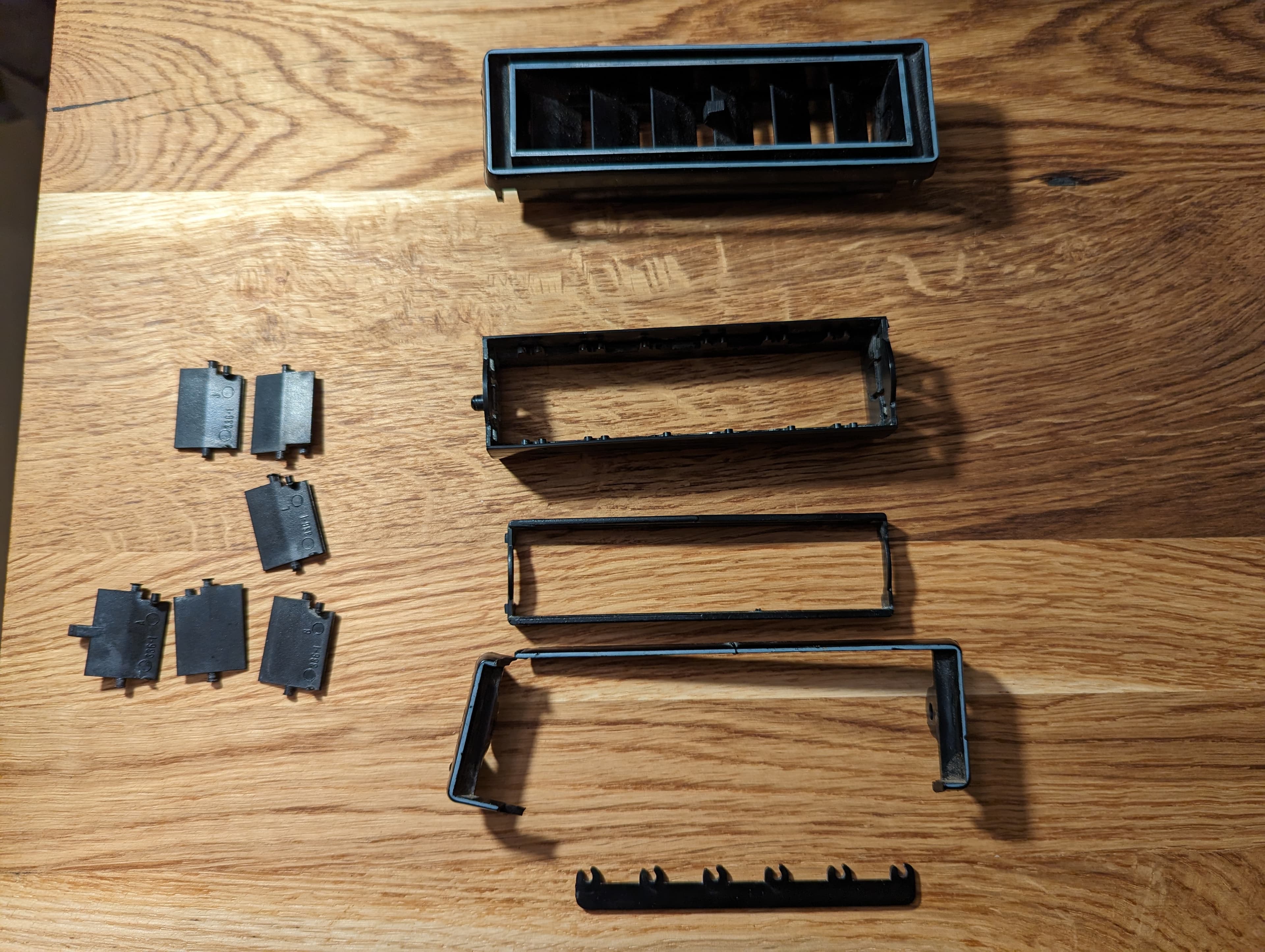

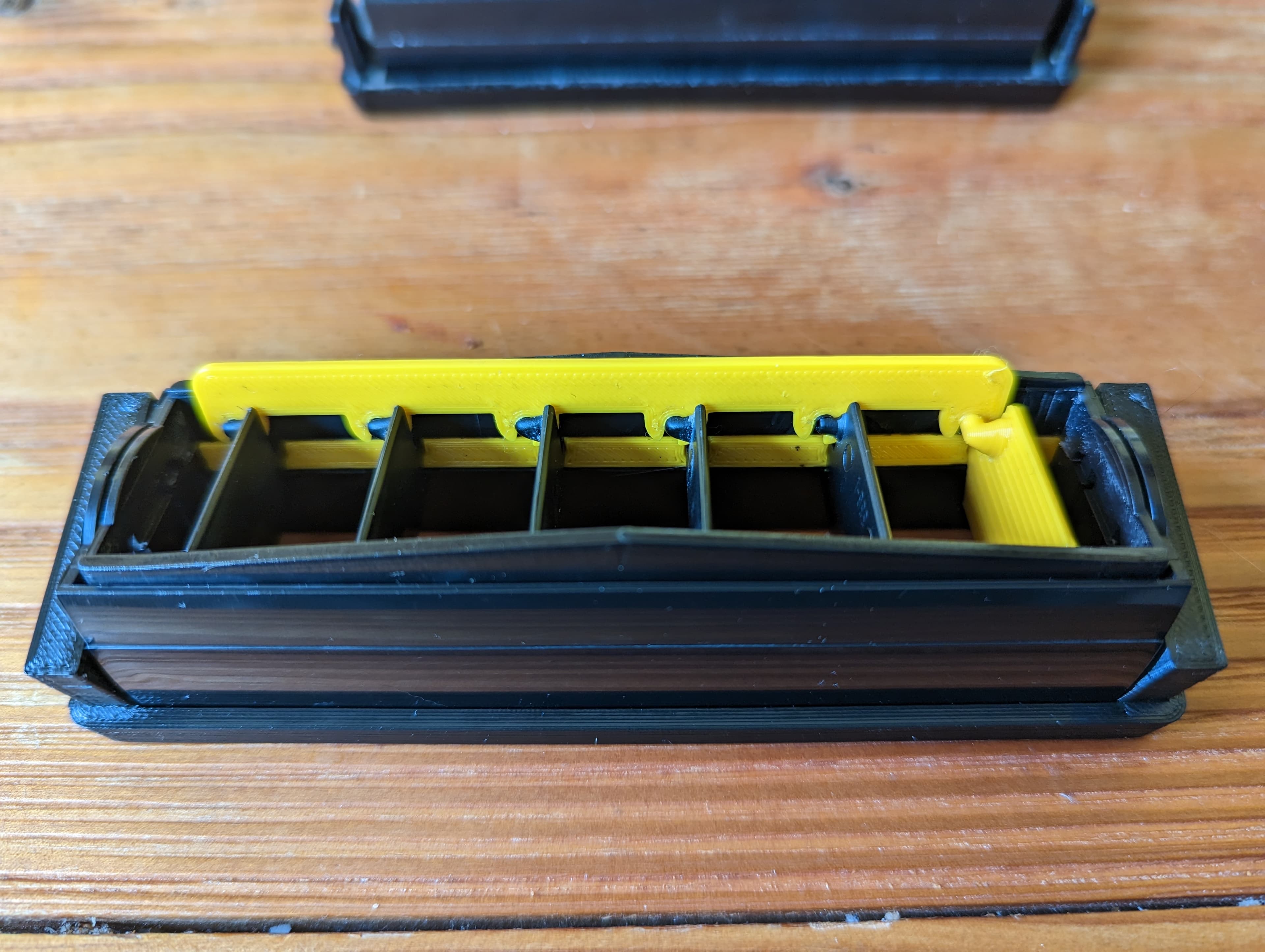

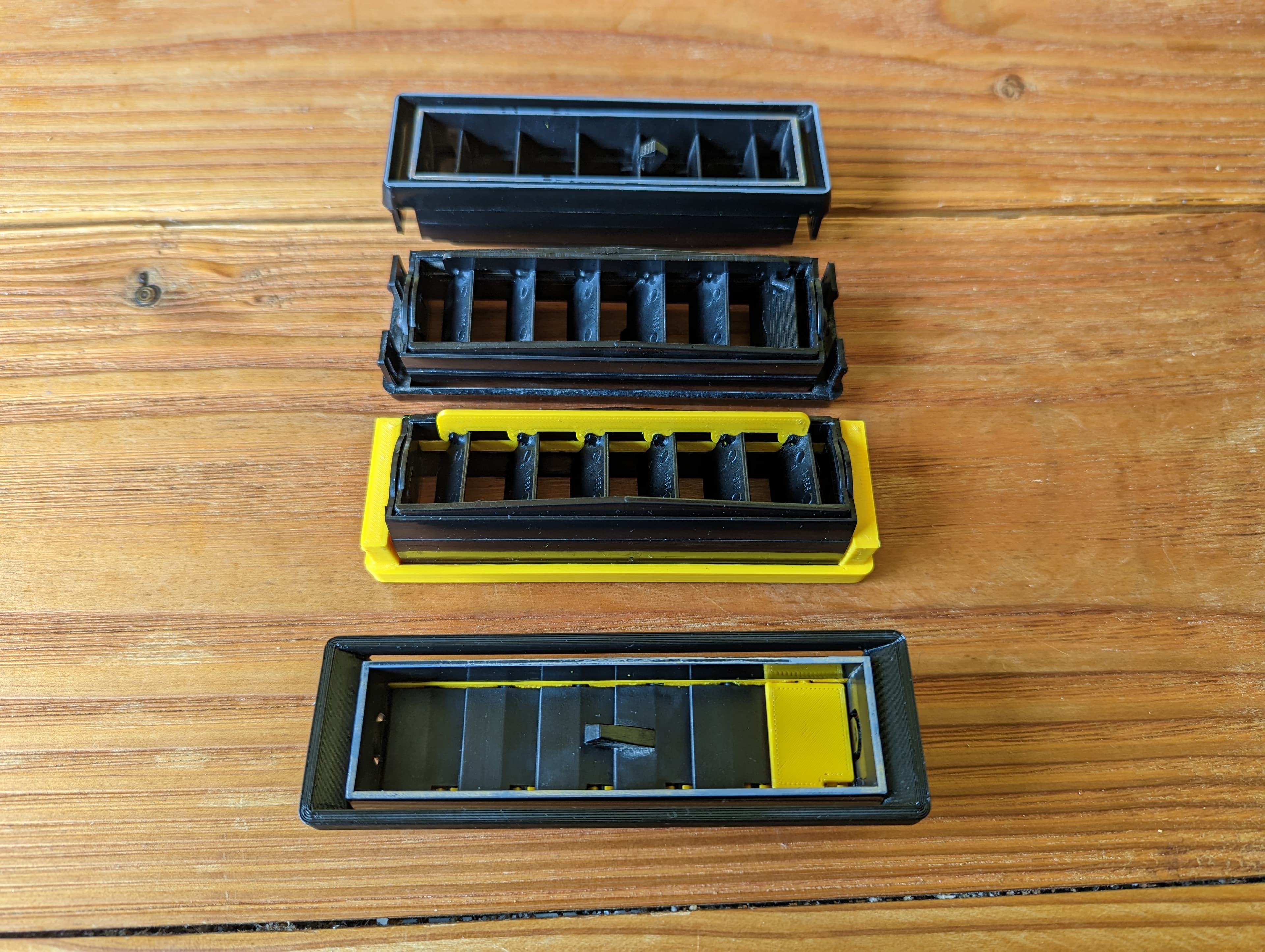

Four-piece replacement repair set for the air-conditioning louvre assembly in a 1995 Land Rover Defender 300 Tdi (1994-1998), comprising the louvre, outer frame, alignment strip, and louvre clip rail. The louvre-fit holes require drilling to 2.5 mm; the louvre requires supports and the other components print without supports. Verify the exact AC vent variant, hole size, retention, louvre movement, and cabin-heat material suitability before installation. This should also fit other pre-puma/td4 Defenders

View original source ↗
