Rear-Seat Latch Repair Clip
REPLACES OEMLR057393 · LR057394
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYSeats
Loading 3D viewer...
CARGO ID · LR-3D / 0066QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs5 PLATES
PLATE 01 / 05No caption recorded
Cargo manifestMAN-0066
- [01]landroverSeatTrimtool1.stllandroverSeatTrimtool1.stl.STL
- [02]landrover_rearseat_clip1.stllandrover_rearseat_clip1.stl.STL
- [03]Bounding box77.170 × 34.630 × 32.272 mm
- [04]Volume18,702.121 mm³
Depot briefBY JAMES SCHNAIDER (JRS824)

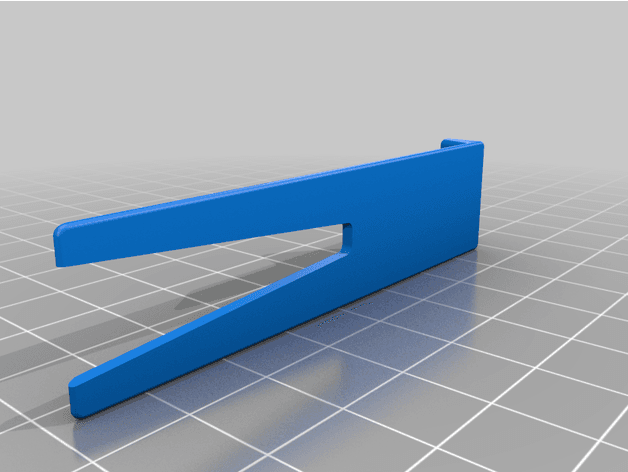

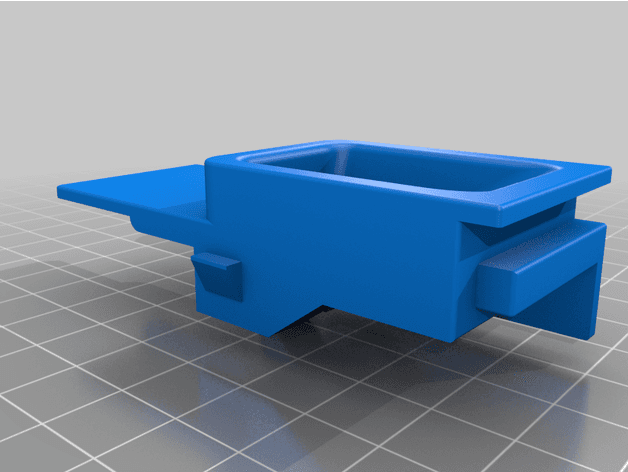

Repair clip for a broken rear-seat latch, supplied with a trim-removal tool. Reuses the original spring
