Glovebox-Damper Bottom Clip

REPLACES OEMLR039802

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYDashboard

Loading 3D viewer...

CARGO ID · LR-3D / 0142QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs4 PLATES

PLATE 01 / 04No caption recorded

Cargo manifestMAN-0142

[01]Clip.stlClip.stl.STL
[02]Sleeve.stlSleeve.stl.STL
[03]Bounding box35.000 × 28.000 × 12.000 mm
[04]Volume1,795.629 mm³

Depot briefBY CHRIS EGLIN (CHRISEGLIN)

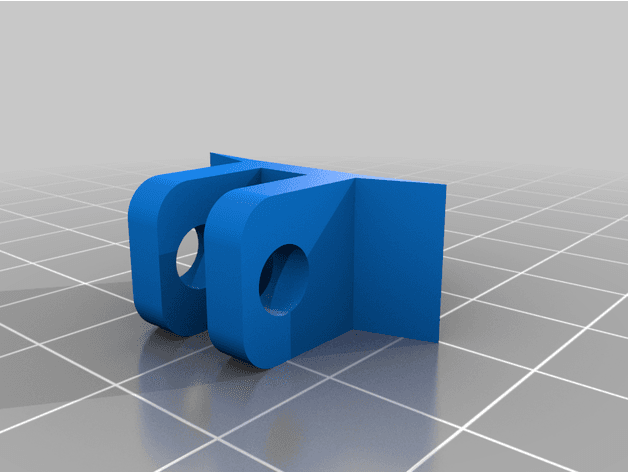

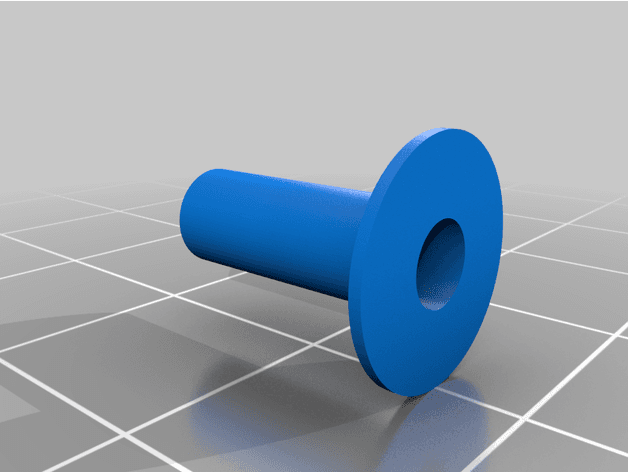

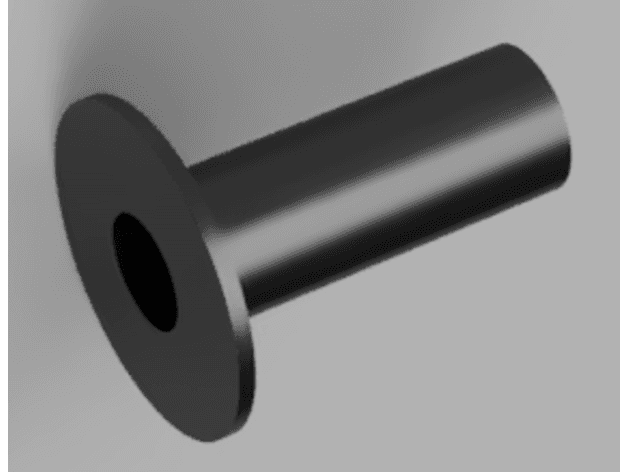

Bolt-on lower clip and rotating sleeve for repairing the glovebox damper. Install with an M3 × 16 mm fastener, nut, and locking washer, and orient the clip for strength as shown by the source.

View original source ↗
